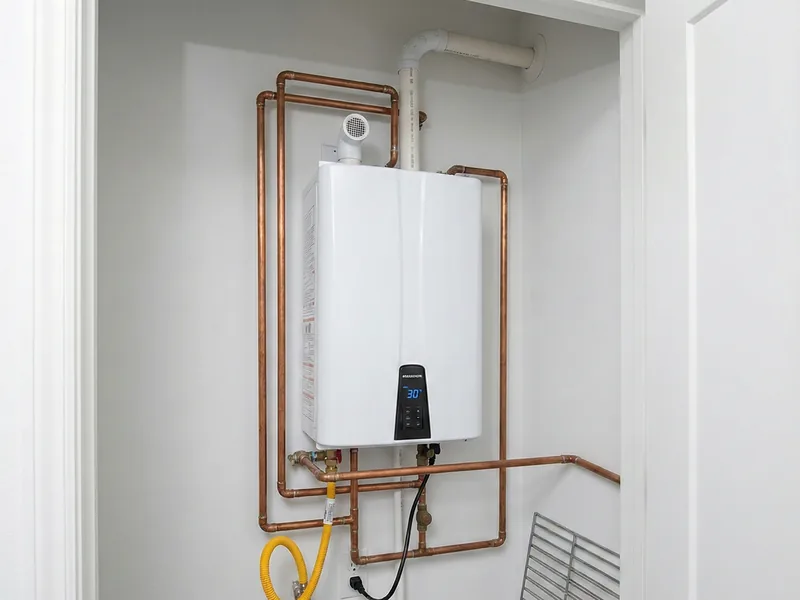

Tankless Water Heater Leak Repair in Elmhurst, IL 60126
IN SHORT
A leaking tankless unit in Elmhurst, IL 60126 needs water, gas, and power shut off first, then a trace of the leak to the heat exchanger, a fitting, or the condensate drain. Freeze-thaw winters punish exterior installs, so we inspect the condensate path and vent run too. Call (833) 713-2101 to schedule a diagnostic visit.
Signs Your Tankless Unit Is Leaking in Elmhurst, IL 60126
Cold-weather leaks
In DuPage County winters, tankless units mounted on exterior walls, in garages, or in unconditioned spaces face freeze risk every January. Built-in freeze protection only works while the unit has power, so a power outage during a cold snap can freeze water inside the heat exchanger or the short copper runs feeding it, and the thaw reveals split pipes and cracked fittings. If a leak appears for the first time after a hard freeze, tell us; freeze damage follows a pattern, and knowing the trigger lets us check every vulnerable joint instead of just the obvious drip.
Shutdowns and error codes
A tankless unit that shuts down mid-shower or flashes an error code is often protecting itself from water where the electronics live. Leaks inside the cabinet drip onto control boards, flame sensors, and ignition components, and the unit responds the only way it can: by locking out. If your hot water cuts out, the unit restarts after a while, then quits again, water intrusion is high on the suspect list. Note which code the display shows before you reset anything; that code is the first clue we use during diagnosis, and it costs nothing to write it down.
Condensate trouble
High-efficiency condensing tankless units produce a steady trickle of acidic condensate whenever they fire, and that condensate has to go somewhere by design. When the condensate drain clogs, the neutralizer cartridge saturates, or the drain line was never properly run, the backup overflows at the unit and looks exactly like a leak. The difference matters: condensate is corrosive to concrete and metal, so a condensate overflow left alone eats the floor and the fittings it touches. If the puddle is under the condensate outlet and the water feels slightly slippery, say so when you call; it changes what we bring.
Any of these signs warrants a look before the problem grows:
- Water dripping from the condensate outlet or an overflowing condensate drain
- The unit shuts down or displays an error code, then works again after a reset
- Hot water that swings between hot and cold, or takes much longer to arrive
- Water stains on the drywall or framing behind or below the unit
- A puddle or damp spot on the floor directly beneath the wall-mounted unit
- White or green mineral crust trailing from a fitting, seam, or the bottom panel
Noticed a puddle under the unit or an error code that keeps returning? Call (833) 713-2101. Shutting off the water and power to the unit before we arrive is the one step that prevents a small leak from becoming a big one.
What Causes Tankless Water Heater Leaks in 60126
Installation shortcuts
A surprising share of tankless leaks trace back to the original installation rather than to wear. Venting run without proper slope lets combustion condensate drain back into the unit instead of away from it. An undersized gas line starves the burner, causing sooting and overheating that stresses the exchanger. Missing isolation valves mean the unit can never be flushed, guaranteeing the scale problem described above. We find these issues most often in units installed during rushed remodels, and part of our leak repair is documenting what we find so the underlying cause gets fixed along with the symptom.
Freeze damage
Water expands when it freezes, and copper does not stretch. A tankless unit's heat exchanger holds only a small volume of water in thin-walled passages, which makes it more vulnerable to freeze damage than a forty-gallon tank. Exterior-wall installations, garage mounts, and units in unheated crawl spaces are the usual victims, especially when a winter power outage disables the unit's internal freeze protection. The damage often hides until the spring thaw, when split seams and cracked solder joints start weeping. We see this pattern every year after the first deep freeze, and the repair always starts with a full inspection of every joint the freeze could have reached.
Worn seals, gaskets, and sensors
Even a well-installed, regularly flushed unit has wear items. O-rings and gaskets around the heat exchanger, the flow sensor housing, and the water inlet and outlet connections all age, and thermal cycling, heating and cooling thousands of times, slowly compresses and hardens them. Water hammer from fast-closing valves elsewhere in the house adds mechanical shock to those same joints. When a leak appears at a fitting on a unit that is otherwise healthy, the fix is usually straightforward: depressurize, replace the seal set, reseat the connection to spec, and verify under full operating pressure.
How We Repair a Leaking Tankless Unit in Elmhurst
Here is the step-by-step process we follow on a tankless water heater leak repair call in Elmhurst, IL 60126. The order is deliberate: safety and diagnosis come before any wrench turns, and verification closes the job.
- Safety first, then diagnosis. Every tankless leak call begins the same way: water off, gas off, power off. Only then do we open the cabinet. Tankless units combine gas, electricity, and water in a small enclosure, and the order of operations matters for safety as much as for diagnosis.
- Symptom interview and code check. We ask when the leak shows up, whether hot water performance changed first, and what the display has shown. Then we read the stored error codes. A leak that only appears during high-demand firing points at the heat exchanger; a constant weep points at a fitting or seal; an intermittent puddle points at condensate.
- Thermal and moisture mapping. Using a moisture meter and thermal imaging, we map where water has traveled inside and around the cabinet. This step catches secondary damage, wet insulation, corroded brackets, compromised drywall behind the unit, that a fitting-only repair would miss.
- Pressure-test each circuit. We isolate the heat exchanger, the inlet and outlet assemblies, and the condensate path, then pressure-test each one. The circuit that will not hold pressure is the circuit with the failure, which keeps the repair targeted instead of exploratory.
- Replace wear parts as a set. When a gasket or O-ring has failed from age and heat cycling, its neighbors are on the same clock. We replace seal sets rather than single seals, and we replace rather than reuse any fastener or clip that shows corrosion, because a leak repair that fails in six months is not a repair.
- Water quality and pressure check. Before closing up, we test the incoming water hardness and the house water pressure. High pressure accelerates every leak mechanism in a tankless unit, and hard water sets the descaling schedule. Both readings go into the notes we leave with you.
- Full-cycle verification. The unit is restarted, air is purged, and we run it through a complete heating cycle while watching every repaired joint, the condensate drain, and the display. We also confirm the freeze-protection circuit is armed before we leave, because the next cold snap is always coming.
Equipment and Materials for Tankless Leak Repair in 60126
Seals, sensors, and exchanger parts
The wear parts in a tankless unit are specific to the make and model: O-ring and gasket sets for the heat exchanger and water connections, flow sensor housings, inlet screens, and, when the exchanger itself has pinholed, the heat exchanger assembly. We carry common seal kits and source manufacturer-spec parts for the rest, because a gasket that almost fits is a leak waiting to happen. Every connection is reassembled to the manufacturer's torque specification, not tightened by feel.
Diagnostic instruments
Finding the real source of a tankless leak takes more than eyes. We use moisture meters and thermal imaging to trace water inside the cabinet, a manometer to verify gas pressure to the burner, and a combustion check on restart to confirm the unit is firing cleanly after repair. A water hardness test kit rounds out the visit, because the hardness reading sets the flushing schedule that keeps the repair from recurring.
Condensate system components
Condensing units need a working condensate path: the internal trap, the neutralizer cartridge that tames the acidity before the water hits your drain or sump, and the drain line itself. We stock neutralizer media, replacement traps, and the fittings to re-run a drain line with proper continuous slope. A surprising number of mystery leaks turn out to be condensate backups, and rebuilding this path correctly ends them permanently.
Local Factors: Tankless Leaks in Elmhurst, IL 60126
Every town in DuPage County shares the same hard winters and the same Lake Michigan water, but the housing stock decides how those constants turn into actual leaks. In Elmhurst, IL 60126, the local picture looks like this:
Elmhurst is a prestigious suburb of 1920s and 1930s colonials, with newer teardowns filling in between, anchored by Elmhurst University and a busy downtown.
Galvanized supply lines persist in the unrenovated colonials, though many homes have been repiped with copper over the decades.
The Salt Creek watershed runs through town and several neighborhoods sit in genuinely flood-prone areas, which puts basement water heaters at real risk during big storms.
Lake Michigan water serves the city, and in the flood-plain blocks a water heater is as much a flood-survival question as a plumbing question.
Elmhurst homeowners in flood-prone blocks increasingly mount tankless units on the wall, up and away from the floor, which is smart flood planning until a leak at a fitting rains down inside the wall cavity, so we pay special attention to mounting and drip containment on these jobs.
If any of this sounds like your home, call (833) 713-2101. Tell us the ZIP code 60126 and what you are seeing, and we will take it from there.
Tankless Leak Repair FAQs in Elmhurst, IL
Why do tankless units in Elmhurst develop leaks?
Direct answer: the same three culprits as everywhere else, shaped by local conditions. In Elmhurst's 60126 housing stock, many units are retrofits into older homes, where we find undersized gas lines, improvised vent runs, and heat exchangers that have never been flushed in moderately hard DuPage Water Commission water. Winter does the rest: exterior-wall and garage installs freeze when power drops. The local pattern is retrofit-related leaks first, scale second, freeze damage third.
Does the water in 60126 cause tankless leaks?
Direct answer: it contributes. Lake Michigan water through the DuPage Water Commission is moderately hard, and without annual flushing that hardness becomes scale inside the heat exchanger. Scale insulates the metal, the burner overheats it, and pinholes or gasket failures follow. Homes on Elmhurst's older plumbing sometimes add a second factor: restricted flow from corroded galvanized feeds makes the unit short-cycle, stressing every seal. A hardness test on our visit tells us exactly where your home sits on that scale.
Where are tankless units usually installed in Elmhurst homes, and does it matter?
Direct answer: it matters a great deal. In Elmhurst, we find them wall-mounted in basements, tucked into garage corners, and occasionally on exterior walls. Basement installs near Wilder Park homes stay freeze-safe but can sit in damp air that corrodes fittings; garage and exterior installs face the January freeze directly. Location decides the failure mode, so the first thing we note on a leak call is where the unit lives and what that location exposes it to.
My Elmhurst home is older. Is a leaking tankless unit worth repairing?
Direct answer: often yes, and Elmhurst's housing stock is exactly why. Galvanized supply lines persist in the unrenovated colonials, though many homes have been repiped with copper over the decades. A tankless unit with a failed gasket set or a scaled exchanger is usually a strong candidate for repair, especially when the alternative is re-piping half the house for a new install. We assess the unit's overall condition, the availability of parts, and the state of your supply lines, then give you a straight recommendation: repair it, or put the money toward replacement.
How often should a tankless unit be flushed in DuPage County water?
Direct answer: once a year is the standard guidance for moderately hard Lake Michigan water as delivered through the DuPage Water Commission, and more often if your hardness test reads high. The flush is what prevents the scale buildup that causes most heat exchanger leaks. A unit with isolation valves takes under an hour; a unit without them needs the valves installed first, which we do as part of a leak repair.
Why does my tankless unit only leak in winter?
Direct answer: winter leaks usually mean freeze damage or condensation issues. A freeze-split joint weeps once it thaws, and cold intake air increases condensation in the venting. If the leak appears after the first hard freeze and the unit sits on an exterior wall or in a garage, freeze damage is the prime suspect, and we inspect every joint the cold could have reached.
Will a leak damage the electronics inside the unit?
Direct answer: it can, which is why a leaking unit should be shut down promptly. Water dripping onto the control board, ignition components, or flame sensor causes the shutdowns and error codes many owners notice, and prolonged exposure corrodes the boards. A fast repair limits the damage to the plumbing side; a slow one can turn a gasket job into a control board replacement.
