Water Heater Thermostat Replacement in Addison, IL 60101

IN SHORT: If the water heater in your Addison, IL 60101 home delivers scalding, lukewarm, or no hot water, a failed thermostat is a likely cause. Our first step is testing both thermostats with a multimeter to confirm the failure. We then replace the faulty control and calibrate it to 120°F. Call (833) 713-2101 to schedule service.

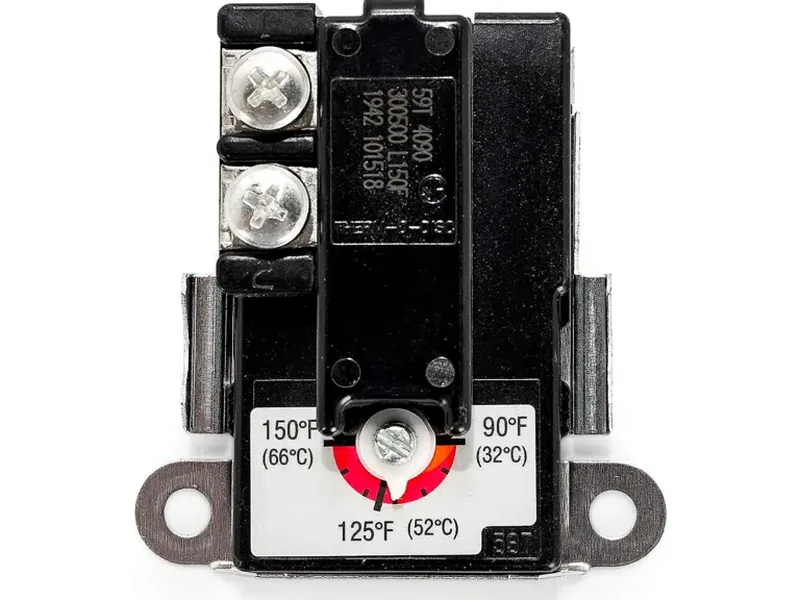

Thermostat Replacement in Addison, IL 60101

A failing thermostat is one of the most common reasons a water heater in Addison, IL 60101 stops delivering reliable hot water. The repair is usually straightforward: test both thermostats with a multimeter, replace the faulty control with a correctly matched unit, and calibrate it to a safe 120°F. Below is how we diagnose and replace water heater thermostats across Addison — what fails, why it fails here, and exactly what we do about it.

Addison's residential streets are lined with post-WWII ranch homes built in the 1950s and 60s, many near the Lake Street corridor and Army Trail Road, alongside newer townhome pockets and an industrial-commercial belt along the village's northern edge. In the older ranches, galvanized steel supply lines and cast iron drains are still common, and the water heater usually sits in a full basement tied to an aging sump pump system.

Because so much of Addison's housing went up in the same two-decade window, water heaters across the village tend to reach the end of their component life in waves — when one block starts seeing failures, neighboring blocks often follow within a season or two. Flat terrain and heavy clay soil push spring meltwater toward foundations, so basement water heaters in Addison, IL 60101 live in damper air than most homeowners realize.

In Addison's 1950s-60s ranch homes, the water heater's thermostat and heating elements do their work in a full basement that is often damper than the homeowner realizes — block walls, an aging sump pump, and laundry humidity all share the air. The heaters themselves are usually second- or third-generation replacements working around original galvanized piping, which means the components fail in an environment of rust-enriched sediment and corroding electrical connections. Understanding that environment is what separates a lasting repair from a repeat visit.

Signs Your Water Heater Thermostat Is Failing in Addison

The failure pattern we see most in Addison starts intermittently: hot water for a week, then a cold morning, then hot again. That on-again-off-again behavior is the signature of corroded thermostat terminals in a damp basement — the connection works until vibration or temperature change breaks it. The second Addison pattern is the shrinking hot-water supply: showers that used to run hot for twenty minutes now go cold in ten, which points to a lower element buried in sediment or a lower thermostat blinded by it. Homeowners near the Lake Street corridor and Army Trail Road describe the same progression so often we can practically diagnose it over the phone — though we always confirm with instruments on site.

Addison's ranch-home heaters tend to fail in recognizable ways. If you notice any of the following in your home, the thermostat — or the damp basement air attacking its connections — belongs at the top of the suspect list:

  • No hot water at all. When the upper thermostat fails in the open position, the heating elements never receive power and the whole tank goes cold. This is the most common ‘dead heater’ call we get — and it is frequently a single-component fix, not a new tank.
  • Hot water runs out much faster than it used to. The lower thermostat handles the bulk of the tank. When it fails, only the top portion heats, so showers go cold halfway through even though the tank is full.
  • Water comes out scalding hot. A thermostat stuck in the closed position keeps calling for heat, driving tank temperature well past the set point. This is a safety issue — overheated water can scald in seconds — and it warrants a prompt call.
  • Temperatures swing between hot and cold. Worn contacts inside the thermostat make intermittent connection, so the elements cycle unpredictably and no shower feels the same twice.
  • The breaker keeps tripping (electric models). A shorted thermostat can trip the breaker or the heater’s high-limit safety switch again and again, especially during heating cycles.

If two or more of these sound familiar in your Addison home, call (833) 713-2101 sooner rather than later — in these damp mid-century basements, an intermittent thermostat fault rarely stays intermittent, and a stuck-closed control overheating the tank is a genuine safety concern.

What Causes Thermostat Failure in Addison Homes

Two local factors drive component failure in Addison more than anything else. The first is sediment from moderately hard Lake Michigan water accumulating in tanks that, in our experience, are rarely flushed — the beds insulate thermostat sensors so the control over-fires, and they bury lower elements until the elements overheat and burn through. The second is the village's flat, clay-soil drainage: spring thaws push moisture into basements, and that dampness works on every electrical connection in the heater's access panels year after year. In the oldest ranch homes, a third factor joins in — original-era wiring and tired breakers that deliver slightly irregular power, which pits thermostat contacts faster than clean power would.

Simple age finishes what local conditions start. Thermostat contacts open and close with every heating cycle — thousands of times a year — and they eventually pit and wear to the point of unreliable contact. Power surges during storms can also damage contacts in a single event: welded shut (causing overheating) or burned open (causing no hot water).

In Addison, the combination of basement humidity and never-flushed sediment is the classic thermostat killer: moisture corrodes the thermostat terminals and wiring in the lower access panel, while sediment blankets the tank wall where the thermostat sensor reads temperature, so the control misreads the water as cooler than it is and overheats the tank.

Our Thermostat Replacement Process

Thermostat replacement is precise electrical work, and in Addison's mid-century homes it starts with verifying the circuit — not assuming the panel labels are right. Here is exactly what we do at your home:

  1. Shut off power at the breaker for electric models (or turn the gas control to pilot/off for gas models), and confirm zero voltage with a non-contact tester before touching anything.
  2. Remove the access panels and fold back the insulation to expose the upper and lower thermostats.
  3. Photograph the existing wiring so every wire returns to its exact terminal — no guesswork on reassembly.
  4. Test both thermostats and both heating elements with a multimeter to confirm the true failed part. We replace on evidence, never on assumption.
  5. Disconnect the wiring and unclip the failed thermostat from the tank wall.
  6. Mount the new thermostat flush against the cleaned tank wall — full contact matters for accurate sensing — and reconnect every wire to its photographed position.
  7. Set the temperature dial to 120°F, then restore the insulation and refasten the access panels.
  8. Restore power and monitor the first full heating cycle, verifying the delivered hot-water temperature at a nearby tap.

Servicing heater components in Addison's ranch basements is usually straightforward on access — unfinished utility areas with reasonable clearance — but the details matter. We confirm the correct breaker at the unit with a non-contact tester, because the panel is often across the basement and mid-century labeling can't be trusted. For element work, the drain hose typically routes to a floor drain or the sump pit; in homes where the sump sits far from the heater, we plan the hose run before opening the drain valve.

Water-specific prep is where Addison jobs differ from the textbook: sediment beds in never-flushed ranch tanks can be deep enough to clog a drain valve mid-drain, so we work the valve patiently and flush in stages rather than forcing it. And because basement dampness is a given here, we inspect every terminal and wire in the access panels — not just the failed part — since green corrosion on a neighboring connection predicts the next failure.

Parts and Equipment We Use

Parts for Addison's heaters are standard residential configurations — the village's heater vintages run from 1980s replacements to current models, and thermostats and elements follow long-stable sizes we stock. What we pay attention to is matching: the replacement must suit the heater's voltage and element wattage exactly, and in the galvanized-era homes we check the anode rod's condition while we're in there, since rust-heavy water depletes anodes faster and a dead anode lets corrosion attack the new element's flange.

  • Multimeter — for continuity and voltage testing of thermostats and elements before anything is replaced
  • Non-contact voltage tester — confirms power is truly off before work begins
  • Replacement thermostats (upper and lower) — matched to your heater’s voltage and element wattage
  • Insulated screwdrivers and wire connectors — for safe, solid terminal work

Why Addison Homes See Thermostat Problems

Most Addison water heaters sit in full basements of 1950s-60s ranch homes, where the original galvanized piping is now at or past the end of its practical life. Corroded nipples and dielectric unions on top of the tank are a familiar sight in these basements, and the damp block-wall construction of the era holds humidity that works its way into every electrical connection on an electric unit. Townhome communities near Centennial Park add shared-wall installations, where a failing component can affect a neighbor's unit before the owner notices anything.

Addison's flat, clay-heavy ground drains poorly, and the village has a long history of stormwater management challenges during spring thaws and summer downpours. Sump pumps in older homes run hard in March and April, and when they lag, basement floors take on water that reaches water heater bases and lower access panels. DuPage County winters add another stress: incoming water arrives near freezing, forcing heating components into longer cycles that wear them faster.

Tap water in Addison comes from Lake Michigan through the DuPage Water Commission, so it is moderately hard — not aggressive enough to destroy equipment quickly, but mineral-heavy enough that sediment builds steadily in tank bottoms over the years. Homeowners near Addison Trail High School and along Fullerton Avenue often tell us their heaters have never been flushed, which means a decade or more of accumulated sediment is quietly insulating sensors and burying components.

Timing has a pattern in Addison too: component failures cluster in late winter and early spring, when incoming water is at its coldest and heaters run their longest cycles of the year. The spring thaw adds basement moisture at exactly the moment electrical connections are most stressed. If your Addison heater is past ten years old and has never had its controls serviced, a pre-winter check — testing the thermostats and elements before the coldest water arrives — is the most economical service call you can make.

One more Addison-specific note: the village's industrial-commercial belt along the north side can mean elevated municipal water pressure in nearby residential blocks, and high pressure stresses the TPR valve and tank connections. When we service your heater, we check static pressure as a matter of course — a failing thermostat or element is sometimes only half the story, with pressure doing quiet damage in the background. It's a five-minute check that has saved more than one Addison homeowner a repeat failure.

Schedule Thermostat Replacement in Addison, IL 60101

If the Thermostat Replacement in your Addison home has failed — or is showing the warning signs above — call Water Heater Leak Repair Rescue at (833) 713-2101. We test with instruments, replace only the part that actually failed, flush the sediment that caused the problem, and verify your hot water before we leave. One visit, same-day hot water, no upsell.

We work across all of Addison, IL 60101 — the ranch blocks near Addison Trail High School, the townhome communities off Army Trail Road, the streets along the Lake Street corridor, and the neighborhoods by Centennial Park. Whatever era your home and heater belong to, we arrive with the test equipment and matched parts to finish the job.

Frequently Asked Questions

Yes. Persistent basement humidity corrodes thermostat terminals and the wiring inside the access panels, especially on the lower thermostat near the floor. In Addison's 1950s-60s ranch basements we frequently find green corrosion on terminals that causes intermittent operation long before the thermostat itself wears out. A dehumidifier near the heater and keeping stored items away from the unit both help. We see this most in the ranch homes south of Lake Street, where the laundry shares air with the heater and humidity runs highest. If you run a dehumidifier, place it within a few feet of the heater — that's where the terminals need the driest air.
Addison receives Lake Michigan water through the DuPage Water Commission, which is moderately hard. Over several years it deposits sediment that insulates thermostat sensors and buries lower heating elements. Flushing every year or two prevents most of this damage. Homes that have never been flushed — common in Addison's older ranches — see component failures noticeably earlier. The practical test takes thirty seconds: open the drain valve into a bucket. If the first gallon runs cloudy or gritty, your tank is overdue. Most Addison homes we visit fail that test, which is why flushing is part of every element and thermostat job we do here.
It can be. Voltage spikes during DuPage County storms can damage thermostat contacts or trip the high-limit reset on electric models. If your heater in Addison, IL 60101 started misbehaving after an outage or flicker, check whether the reset button on the upper thermostat has tripped before assuming a part has failed — and call (833) 713-2101 if it trips again. After major DuPage County storms, we take several of these calls in a single week — usually tripped high-limit switches or damaged contacts. If your whole block lost power, check the heater's reset button before calling; if it was just your home, call us, since the surge may have come through your own panel.
If the tank itself is sound — no leaks from the tank body, no rusty hot water — replacing a failed thermostat or element is the sensible call and costs far less than a new unit. If the tank is leaking from its body or producing rust-colored water, the tank is finished and component replacement would be wasted money. We tell you honestly which situation you're in before any work begins. The honest inspection takes about fifteen minutes: we check the tank body for weeping seams, test the hot water for rust, and read the rating plate for age. In Addison's 1950s-60s homes we deliver both verdicts regularly — repaired tanks and replaced ones — and you'll see the evidence before we recommend anything.
Because that's when everything converges: incoming Lake Michigan water is near its coldest, so heating cycles run longest and components work hardest; and the spring thaw pushes moisture into basements, stressing electrical connections. A thermostat or element that was marginal in October often gives out by March. If your Addison, IL 60101 heater is aging, late fall is the smart time for a check. The cheapest prevention is a fall checkup: we test both thermostats and elements, read the sediment depth, and confirm the high-limit switch is healthy — all before the coldest water of the year arrives. One visit in October beats an emergency call in February.
We test both with a multimeter — instruments decide, not guesswork. A thermostat with proper continuity that still misbehaves usually has worn contacts or a failed sensor; an element with no continuity is burned out. The symptom pattern also guides us: scalding or wildly swinging water temperatures point to the thermostat, while a full tank of cold water with an untripped breaker leans toward the element. We confirm with testing before replacing anything.
Not always. If testing shows only the lower thermostat has failed and the upper tests perfectly, we replace just the lower one — there is no reason to charge you for a good part. But when a heater is past ten years and one thermostat has failed, we discuss replacing both, since the second is living on borrowed time and a return visit costs more than the part.
120°F. That is the setting recommended by the U.S. Department of Energy — hot enough for comfortable showers and effective dishwashing, cool enough to prevent scalding, and easier on the tank: lower settings slow sediment baking and slow tank corrosion. We set every replacement to 120°F unless you ask for a different setting.
