Water Heater Thermostat Replacement in Glen Ellyn, IL 60137

IN SHORT: If the water heater in your Glen Ellyn, IL 60137 home delivers scalding, lukewarm, or no hot water, a failed thermostat is a likely cause. Our first step is testing both thermostats with a multimeter to confirm the failure. We then replace the faulty control and calibrate it to 120°F. Call (833) 713-2101 to schedule service.

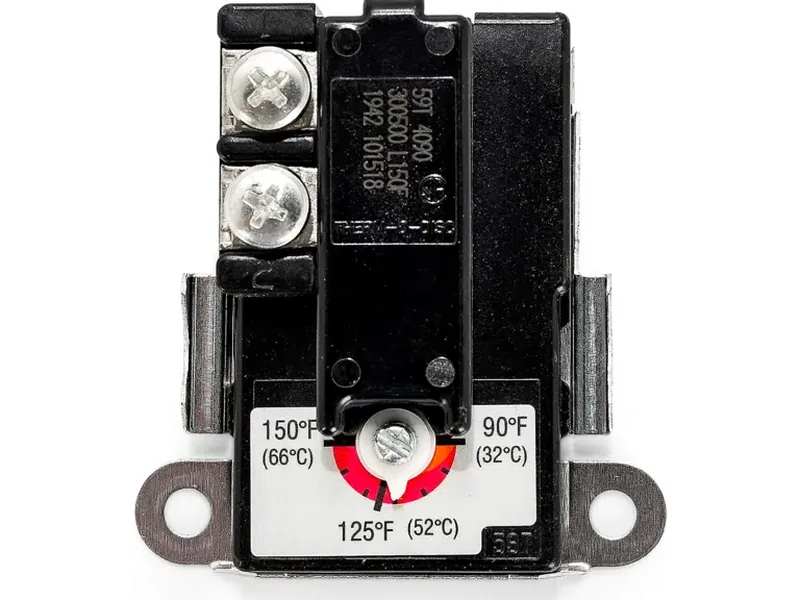

Thermostat Replacement in Glen Ellyn, IL 60137

A failing thermostat is one of the most common reasons a water heater in Glen Ellyn, IL 60137 stops delivering reliable hot water. The repair is usually straightforward: test both thermostats with a multimeter, replace the faulty control with a correctly matched unit, and calibrate it to a safe 120°F. Below is how we diagnose and replace water heater thermostats across Glen Ellyn — what fails, why it fails here, and exactly what we do about it.

Glen Ellyn, the self-styled 'Village of Volunteers,' is a mature suburb of 1920s-50s homes clustered around Lake Ellyn Park, Glenbard West High School, and a walkable downtown. Galvanized and copper supply lines mix by build year, and nearly every home has a full basement where the water heater has sat — in many cases, through multiple replacement generations.

As a mature suburb, Glen Ellyn's infrastructure is aging together: supply lines, valves, and water heater components installed in the same eras are wearing out in the same seasons. In Glen Ellyn, IL 60137, the most common service call is a component that simply reached the end of its working life — a thermostat whose contacts finally pitted through, or a lower element that finally burned out under its sediment blanket.

Glen Ellyn's mature-suburb heaters give their thermostats and elements long, honest working lives — and then the components wear out together, the way parts do after decades of service. The 1920s-50s homes around Lake Ellyn Park and Glenbard West hold heaters (often second- or third-generation) in full basements on galvanized-or-copper plumbing, with sediment beds deepened by years of unflushed lake water. There's little drama in Glen Ellyn failures: no floodplain, no well-water extremes — just time, minerals, and tens of thousands of heating cycles. The repairs are correspondingly straightforward and economical.

Signs Your Water Heater Thermostat Is Failing in Glen Ellyn

Glen Ellyn's pattern is the slow, legible decline: hot water that runs out a bit earlier each season, a tank that rumbles as the sediment bed deepens, then a thermostat whose pitted contacts finally quit or a lower element that burns out under its mineral blanket. Homeowners usually notice the decline months before the failure — the village's attentive home-improvement culture means people call at the 'running out faster' stage rather than the 'no hot water' stage. Lakeside blocks near Lake Ellyn add a mild moisture note: slightly damper basements aging terminals a touch faster, showing up as occasional intermittency in the oldest installations.

Glen Ellyn's mature-suburb heaters usually give plenty of warning — the village's attentive homeowners tend to catch the decline early. If any of the following matches your home, the thermostat is nearing the end of its honest working life:

  • No hot water at all. When the upper thermostat fails in the open position, the heating elements never receive power and the whole tank goes cold. This is the most common ‘dead heater’ call we get — and it is frequently a single-component fix, not a new tank.
  • Hot water runs out much faster than it used to. The lower thermostat handles the bulk of the tank. When it fails, only the top portion heats, so showers go cold halfway through even though the tank is full.
  • Water comes out scalding hot. A thermostat stuck in the closed position keeps calling for heat, driving tank temperature well past the set point. This is a safety issue — overheated water can scald in seconds — and it warrants a prompt call.
  • Temperatures swing between hot and cold. Worn contacts inside the thermostat make intermittent connection, so the elements cycle unpredictably and no shower feels the same twice.
  • The breaker keeps tripping (electric models). A shorted thermostat can trip the breaker or the heater’s high-limit safety switch again and again, especially during heating cycles.

If two or more of these describe your Glen Ellyn heater, call (833) 713-2101. Caught in the warning stage, a thermostat replacement is the simplest, cheapest repair we perform — and your tank will thank you for the promptness.

What Causes Thermostat Failure in Glen Ellyn Homes

Cycle wear and sediment, the two honest killers. Glen Ellyn's thermostats have switched through decades of service — contacts pit, calibration drifts — while moderately hard Lake Michigan water has built sediment in unflushed tanks deep enough to insulate sensors (causing over-firing) and bury lower elements (causing burnout). Galvanized-era homes add rust to the sediment; lakeside blocks add mild terminal corrosion from damper air. Winter deep freezes extend cycles village-wide. Nothing exotic — which is exactly why Glen Ellyn component repairs are so predictable: test, confirm, replace, flush, and the heater returns to full service.

Simple age finishes what local conditions start. Thermostat contacts open and close with every heating cycle — thousands of times a year — and they eventually pit and wear to the point of unreliable contact. Power surges during storms can also damage contacts in a single event: welded shut (causing overheating) or burned open (causing no hot water).

In Glen Ellyn, thermostat failure skews toward honest wear: decades of cycling pit the contacts, and deep sediment in long-unflushed tanks insulates the sensor. The village's moderate basement dampness contributes corrosion as a secondary factor — enough that we always inspect the terminals, but rarely the primary cause the way it is in river-valley towns.

Our Thermostat Replacement Process

Thermostat replacement is precise electrical work. In Glen Ellyn's well-kept basements, the job is clean and methodical — verify, test, replace, calibrate — with full floor protection as standard. Here is exactly what we do at your home:

  1. Shut off power at the breaker for electric models (or turn the gas control to pilot/off for gas models), and confirm zero voltage with a non-contact tester before touching anything.
  2. Remove the access panels and fold back the insulation to expose the upper and lower thermostats.
  3. Photograph the existing wiring so every wire returns to its exact terminal — no guesswork on reassembly.
  4. Test both thermostats and both heating elements with a multimeter to confirm the true failed part. We replace on evidence, never on assumption.
  5. Disconnect the wiring and unclip the failed thermostat from the tank wall.
  6. Mount the new thermostat flush against the cleaned tank wall — full contact matters for accurate sensing — and reconnect every wire to its photographed position.
  7. Set the temperature dial to 120°F, then restore the insulation and refasten the access panels.
  8. Restore power and monitor the first full heating cycle, verifying the delivered hot-water temperature at a nearby tap.

Service access in Glen Ellyn is generally good: full basements, utility areas with workable clearance, modern-ish shutoff valves in most homes. The village's finished-basement culture means we lead with floor protection and careful hose routing — drains go to floor drains, laundry tubs, or sump pits, planned before the valve opens. Breaker panels in the 1920s-50s homes get verified at the unit, since labeling from multiple eras of electrical work can't be trusted on sight.

Sediment is the main service variable: the deepest beds we find are in the oldest homes near Lake Ellyn Park and Glenbard West, where heaters went decades without flushing. We check depth on arrival and stage the flush accordingly — forcing a clogged drain valve is how simple jobs become complicated, so patience here is professional, not slow. Lakeside basements get a terminal-corrosion check as part of the standard inspection.

Parts and Equipment We Use

Glen Ellyn's heater vintages run from 1980s replacements to current models, all on the standard thermostat and element configurations we stock. Because the village's tanks are generally structurally sound — copper or PEX feeds, dry basements, no extremes — the anode check during component service is genuinely informative: a healthy anode plus a sound tank makes the repair-versus-replace decision easy, and in Glen Ellyn it usually comes out 'repair.' Matching to the rating plate stays non-negotiable, as always.

  • Multimeter — for continuity and voltage testing of thermostats and elements before anything is replaced
  • Non-contact voltage tester — confirms power is truly off before work begins
  • Replacement thermostats (upper and lower) — matched to your heater’s voltage and element wattage
  • Insulated screwdrivers and wire connectors — for safe, solid terminal work

Why Glen Ellyn Homes See Thermostat Problems

Glen Ellyn's 1920s-50s homes typically keep the water heater in a full basement utility area, often finished or partially finished given the village's strong home-improvement culture. Galvanized-era homes contribute rust to tank sediment; copper-era homes contribute mostly mineral. Either way, the heaters are frequently older units on their second or third set of components, and the surrounding valves and unions are often as old as the house — we inspect them as a matter of course.

The village sits on glacial moraine with varied drainage — some blocks shed water well, others hold it. Lake Ellyn and the surrounding low areas keep local water tables higher, and basements near the lake contend with more dampness. That moisture works on electrical connections over the years, while winter's deep freezes extend heating cycles across the village. Neither factor is extreme in Glen Ellyn; they simply accumulate over decades of service.

Lake Michigan water serves the village at moderate hardness. The sediment story is the familiar one: steady accumulation, rarely flushed, eventually deep enough to matter. Around Lake Ellyn Park and Glenbard West, where homes are oldest and heaters often oldest too, we find the deepest beds — and the most sediment-driven component failures.

Glen Ellyn's 'Village of Volunteers' spirit shows in its housing stock — these are cared-for homes, and cared-for homes reward preventive attention. If your heater is past ten years and has never had its thermostats tested or its tank flushed, a maintenance visit costs far less than the emergency call it prevents. The village's mature infrastructure means most heaters are in the age window where a single checkup catches the wear before it becomes a failure — and a caught-early thermostat or element is the cheapest repair we perform.

Glen Ellyn's downtown blocks and the streets around the village core hold some of the oldest homes, and those heaters carry an interesting distinction: many are on their third or fourth set of components, which means the tanks that survived this long are the strong ones. There's a selection effect in mature suburbs — the weak tanks failed decades ago, and the survivors earned their longevity through good water, dry basements, and attentive owners. When we test a 1990s Glen Ellyn tank and find it sound, we're usually looking at a heater with years left, and we say so with confidence.

Schedule Thermostat Replacement in Glen Ellyn, IL 60137

For Thermostat Replacement in Glen Ellyn, call Water Heater Leak Repair Rescue at (833) 713-2101. We test with a multimeter, replace only the failed part, flush the sediment, and verify your hot water — usually in a single visit, with full protection for your basement floors.

We serve all of Glen Ellyn, IL 60137: the homes around Lake Ellyn Park, the neighborhoods near Glenbard West High School, the downtown blocks, and the 1920s-50s streets across the village. Mature-suburb plumbing is familiar work, and we treat your home like our own while we're in it.

Frequently Asked Questions

Often yes — thermostats and elements are wear items, and replacing them two or even three times over a tank's life is normal and economical. The question is always the tank's condition: no leaks from the body and no rusty hot water means the tank is still earning its keep. We check that first on every Glen Ellyn, IL 60137 call. The practical limit is the tank's condition, not the parts count. We've serviced Glen Ellyn heaters on their fourth thermostat — each replacement bought years of service for a fraction of replacement cost. Keep the receipts; the pattern tells you the tank is a keeper.
Mildly. Blocks near the lake see slightly higher water tables and damper basements, which ages electrical connections a bit faster. It's a secondary factor — sediment and cycle wear dominate — but in lakeside Glen Ellyn basements we pay extra attention to terminal corrosion during diagnosis. The effect is modest but real — lakeside terminals show corrosion a few years ahead of inland ones. It's not a different maintenance program, just a reason to include the terminal check during any service visit on the lakeside blocks.
Listen and look: popping or rumbling from the tank means water boiling inside a sediment layer, and cloudy or gritty water from the drain valve confirms buildup. Short hot-water supply in a Glen Ellyn, IL 60137 home with an older heater is sediment's signature symptom — call (833) 713-2101 and we'll confirm with testing. The bucket test is definitive: drain a gallon from the drain valve into a white bucket. In Glen Ellyn's older homes near the park, first-time flushes often run dark with sediment — that's years of accumulation leaving, and the heater runs noticeably quieter afterward.
For the vast majority, yes. Thermostats and elements follow standard sizes and ratings that have been stable for decades, and we stock the common configurations. Even heaters from the 1980s-90s typically accept current-production components matched to their voltage and wattage. The one exception is the very oldest oddball units — a few 1970s models used uncommon element threadings. We confirm fitment from the rating plate before dispatch when the heater's age suggests it, so there's no wasted trip.
As many as the tank earns. Thermostats and elements are wear items — replacing them two or three times over a tank's life is normal and economical. The decision point is always the tank: no body leaks and no rusty hot water means keep repairing. In Glen Ellyn, IL 60137's well-kept homes, tanks often outlast expectations, and we'll tell you honestly when yours stops earning the next repair. Watch for the tank's own signals alongside the parts: weeping seams, rust-colored hot water, or a rating plate pushing three decades. Parts are worth replacing until the tank itself speaks — and in Glen Ellyn, tanks often stay quiet for a long time.
We test both with a multimeter — instruments decide, not guesswork. A thermostat with proper continuity that still misbehaves usually has worn contacts or a failed sensor; an element with no continuity is burned out. The symptom pattern also guides us: scalding or wildly swinging water temperatures point to the thermostat, while a full tank of cold water with an untripped breaker leans toward the element. We confirm with testing before replacing anything.
Not always. If testing shows only the lower thermostat has failed and the upper tests perfectly, we replace just the lower one — there is no reason to charge you for a good part. But when a heater is past ten years and one thermostat has failed, we discuss replacing both, since the second is living on borrowed time and a return visit costs more than the part.
120°F. That is the setting recommended by the U.S. Department of Energy — hot enough for comfortable showers and effective dishwashing, cool enough to prevent scalding, and easier on the tank: lower settings slow sediment baking and slow tank corrosion. We set every replacement to 120°F unless you ask for a different setting.
