TPR Valve Replacement in Bloomingdale, IL 60108
IN SHORT
TPR valve replacement in Bloomingdale, IL 60108 starts with testing the old valve and checking system pressure, then installing a new 150 psi / 210-degree valve with correctly routed discharge pipe. Closed plumbing systems are common here, so we check for thermal expansion on every call. Call (833) 713-2101 with your tank's age and drip pattern.
Signs Your TPR Valve Needs Replacing in Bloomingdale, IL 60108
Pressure symptoms around the house
TPR valves do not operate in isolation; they respond to what the whole plumbing system is doing. If you hear banging pipes when a washing machine valve snaps shut, notice the water heater's discharge pipe warm after nobody used hot water, or find the pressure gauge on the system reading high, the TPR valve is absorbing stress it was not meant to handle daily. These are the houses where a replaced valve starts dripping again within months unless the underlying pressure or expansion problem is fixed too, which is why our replacement visit always includes a system pressure check.
The discharge pipe is dripping
The classic symptom is also the most commonly ignored: a slow drip, or an occasional trickle, from the discharge pipe that runs down the side of the tank. Because the pipe usually terminates near the floor behind the tank, the drip can run for months before anyone notices, quietly feeding a damp patch on the concrete or the bottom plate of a finished wall. Put a dry paper towel under the pipe outlet and check it the next day; if it is wet, the valve is telling you something. A TPR valve that drips is a TPR valve that may not seal when it matters, and the drip itself is mineral-laden water that crusts the valve seat a little more with every episode.
Water on the floor with no obvious source
Sometimes the first sign is not the valve at all but its consequences: a puddle near the tank base, damp cardboard in the utility room, or a musty smell that was not there last month. Homeowners understandably blame the tank itself, but a weeping TPR valve routes water down the discharge pipe to the floor, which looks exactly like a tank leak from across the room. Tracing the water upward, rather than assuming the worst about the tank, is the step that saves a good water heater from a premature replacement. We see this misdiagnosis regularly, and the relief on a homeowner's face when the tank is fine and only the valve needs replacing is one of the better parts of the job.
Any of these signs warrants a look before the problem grows:
- A steady drip or intermittent trickle from the TPR discharge pipe
- A puddle or damp concrete near the tank base that traces back up the pipe
- A pressure gauge on the system reads noticeably above normal household range
- The test lever is stuck, stiff, or snaps back without releasing water
- The discharge pipe feels warm even when no hot water has been used recently
- Banging or hammering pipes when fixtures or appliances shut off
If your discharge pipe is dripping or the valve lever will not move, call (833) 713-2101. Do not cap, plug, or valve off the discharge pipe; that defeats the safety device. The first step on our visit is a pressure check, which takes minutes.
What Makes TPR Valves Fail in 60108
Age, fatigue, and wrong ratings
TPR valves are mechanical devices with a spring and a thermal element, and both fatigue with age and cycling. A valve that has been in service for many years may simply be worn out, opening at pressures below its rating or failing to reseat after a legitimate relief event. We also encounter valves with the wrong rating for the tank, replacements grabbed off a shelf without checking the BTU and pressure specs, and valves installed without a discharge pipe at all. The rating matters: a standard residential TPR valve is set for 150 psi and 210 degrees Fahrenheit, matched to the tank it protects, and anything else is a mismatch we correct.
High incoming water pressure
Municipal water pressure varies by neighborhood, elevation, and time of day, and in some DuPage County blocks it runs high enough to keep a water heater perpetually near its relief threshold. A system sitting at elevated pressure leaves the TPR valve no margin: every heating cycle nudges it closer to opening, and eventually it starts weeping at the seat. High pressure also accelerates wear on every seal and valve in the house, from toilet fill valves to the water heater's own connections. A five-minute pressure test with a gauge tells us whether pressure is the culprit, and a pressure-reducing valve on the main is the lasting fix when it is.
Thermal expansion in a closed system
This is the number-one cause of chronic TPR weeping, and it has nothing to do with a bad valve. When water heats, it expands, and in an open plumbing system that extra volume simply pushes back into the municipal main. But many homes now have a pressure-reducing valve, a check valve, or a backflow preventer on the main, which closes the system: the expanded water has nowhere to go, so pressure spikes every time the tank fires. The TPR valve does exactly what it was designed to do and relieves the excess, drip by drip, day after day. Replacing the valve without addressing the expansion just installs a new valve to drip the same way, which is why we check for a closed system and an expansion tank on every TPR call.
How We Replace a TPR Valve in Bloomingdale
Here is the step-by-step process we follow on a tpr valve replacement call in Bloomingdale, IL 60108. The order is deliberate: safety and diagnosis come before any wrench turns, and verification closes the job.
- Test and assess the old valve. We begin by gently testing the existing valve's lever and checking the discharge pipe for signs of chronic weeping. This tells us whether the valve is failed, fouled, or actually doing its job against a system problem like thermal expansion, which completely changes the scope of the fix.
- Check system pressure first. Before the old valve comes off, we put a gauge on the system and check for a closed plumbing system. If pressure is high or the system is closed without an expansion tank, we flag it now, because a new valve on an unaddressed expansion problem is a temporary fix.
- Shut down the water heater. We shut off the cold-water supply to the tank and turn off the energy source: the breaker for an electric unit, the gas control for a gas unit. The tank stays full; we only need the water level below the valve, which sits near the top.
- Drain below the valve level. A hose on the tank drain valve drops the water level a few gallons, just below the TPR tapping. There is no need to drain the whole tank for a valve replacement, which keeps the job quick and avoids stirring up sediment unnecessarily.
- Remove the old valve. The old valve unthreads from its tapping, and we inspect the threads and the tank fitting for corrosion or damage. If the discharge pipe is corroded, kinked, or improperly routed, it gets replaced too rather than reconnected to a new valve.
- Install the new rated valve. The new valve is a 150 psi, 210-degree unit matched to the tank, threaded in with proper thread sealant and tightened to a firm seal without over-torquing the tank fitting. No pipe dope shortcuts, no mismatched ratings.
- Run the discharge pipe to current practice. The discharge pipe is full-size, typically three-quarter inch, runs by gravity with no upward traps, terminates within a few inches of the floor where the discharge would be visible, and has no threads, caps, or valves at its end. If the old routing fell short, this is when it gets corrected.
- Refill, restart, and verify. We close the drain, refill the tank, purge air from the hot lines, and restart the unit. Then we verify: no weeping at the new valve, correct system pressure, and, where an expansion tank was needed, a properly charged tank absorbing the heating-cycle pressure rise.
Equipment and Materials for TPR Replacement in 60108

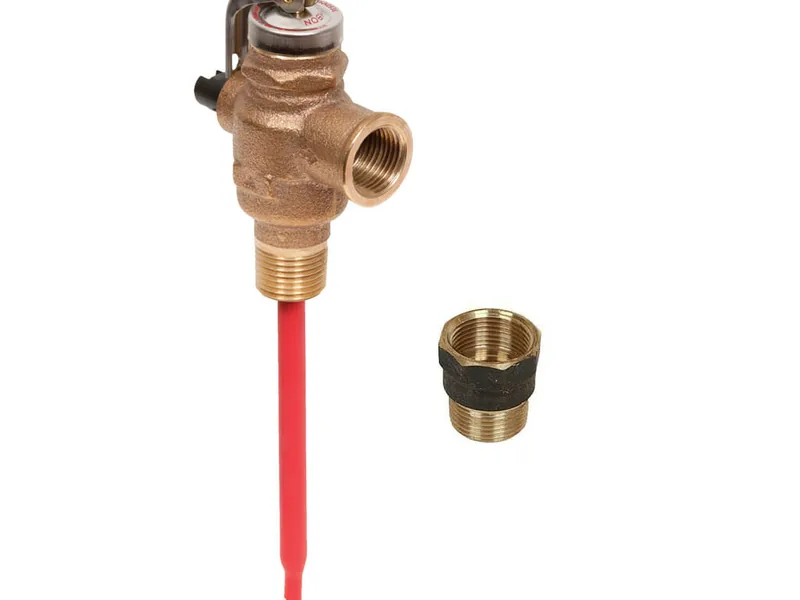

The valve itself
The heart of the job is the replacement TPR valve: a brass temperature-and-pressure relief valve rated at 150 psi and 210 degrees Fahrenheit, sized to the tank's input. We stock the standard residential ratings and match the valve to the water heater's specifications, because an underrated valve is a safety gap and an overrated one may not protect the tank. The valve's probe length matters too; it must reach into the top few inches of tank water to sense temperature accurately.
Discharge piping done right
The discharge pipe is as important as the valve. We run it in copper or CPVC at full valve-outlet size, typically three-quarter inch, pitched to drain by gravity with no sags or upward loops that could trap water. It terminates a few inches above the floor, in a visible location, with a plain cut end: no threads, no cap, no valve. Every one of those details exists so that if the valve ever opens fully, scalding water goes where it can be seen and away from people, not into a hidden wall cavity.
Expansion tanks and gauges
Where thermal expansion is the root cause, the lasting fix is an expansion tank on the cold-water line, pre-charged with air to match the house's water pressure. We carry tanks in the common residential sizes along with an accurate pressure gauge, because the tank's pre-charge must match the actual house pressure to work. A gauge left on a hose bib for a day can also reveal overnight pressure spikes that a single daytime reading misses.
Local Factors: TPR Valves in Bloomingdale, IL 60108
A TPR valve is a safety device, and safety devices fail on local schedules. Here is what sets the schedule in Bloomingdale, IL 60108:
Bloomingdale is largely a 1970s through 1990s subdivision town, with townhome clusters around Stratford Square and older roots in Old Town Bloomingdale.
Copper supply lines and PVC drains from original construction are the rule, which means the plumbing itself is now approaching fifty years old in the earliest subdivisions.
Full basements sit in glacial till with moderate drainage, a step up from the flat clay towns but still capable of holding water against a foundation after heavy rain.
Lake Michigan water serves the village, and the original water heaters installed when these subdivisions were built are long overdue for replacement.
Many Bloomingdale tanks are second-generation replacements in 1970s-era utility rooms, and the TPR discharge pipe from the original install is frequently reused even when it no longer meets current routing, a detail we correct on every replacement.
If any of this sounds like your home, call (833) 713-2101. Tell us the ZIP code 60108 and what you are seeing, and we will take it from there.
TPR Valve Replacement FAQs in Bloomingdale, IL
Why do TPR valves drip more often in Bloomingdale?
Direct answer: local water and local plumbing. Bloomingdale's 60108 homes run on Lake Michigan water that leaves mineral on every valve seat, and copper supply lines and pvc drains from original construction are the rule, which means the plumbing itself is now approaching fifty years old in the earliest subdivisions. that aging supply plumbing means pressure irregularities are common. Where the system is closed by a pressure-reducing valve or backflow preventer, thermal expansion adds nightly pressure spikes the TPR valve must relieve. The valve is usually the messenger; the message is about pressure, minerals, or both.
My Bloomingdale home was built decades ago. Is the TPR discharge routing likely up to current practice?
Direct answer: often not. Bloomingdale is largely a 1970s through 1990s subdivision town, with townhome clusters around Stratford Square and older roots in Old Town Bloomingdale. Water heaters in these homes have frequently been replaced while the original discharge pipe was reused, and routing that was acceptable decades ago often falls short today: undersized pipe, upward traps, termination where a discharge would go unseen, or a pipe that simply ends inside a wall. Every TPR replacement we do includes bringing the discharge routing up to current practice.
Where should the TPR discharge pipe terminate in a Bloomingdale basement?
Direct answer: a few inches above the floor, in a visible spot, with a plain cut end. In Bloomingdale's full basements, that usually means terminating where you will actually see it if the valve ever opens, not behind the tank or into a hidden drain. No threads, no cap, no valve on the end, and a continuous downhill run so the pipe drains by gravity. If your current pipe disappears somewhere you cannot see, that is worth correcting on the replacement visit.
Does Bloomingdale's water affect TPR valves?
Direct answer: yes, through mineral fouling. Lake Michigan water via the DuPage Water Commission is moderately hard, and each weeping episode deposits minerals on the valve seat that make the next seal worse. Lake Michigan water serves the village, and the original water heaters installed when these subdivisions were built are long overdue for replacement. In damp Bloomingdale basements, external corrosion joins internal fouling. The practical upshot: test the lever yearly, and replace rather than nurse a valve that has been crusting over for years.
Why does the TPR valve only drip at night?
Direct answer: nighttime dripping is the signature of thermal expansion in a closed plumbing system. Overnight, nobody opens a tap for hours, the tank fires to recover, the heated water expands with nowhere to go, pressure climbs, and the valve relieves it. By morning the evidence is a damp floor and a crusty pipe. An expansion tank on the cold line gives that expanded water somewhere harmless to go and usually ends the nighttime dripping.
What do the 150 psi and 210 degree ratings mean?
Direct answer: those are the relief setpoints of a standard residential TPR valve. If tank pressure exceeds 150 pounds per square inch, or water temperature at the top of the tank exceeds 210 degrees Fahrenheit, the valve opens to release the excess. The ratings are matched to the tank: the valve must be rated for the tank's input and pressure class, which is why we size the replacement to the specific water heater rather than grabbing whatever is on the shelf.
Does a dripping TPR valve mean I need a new water heater?
Direct answer: usually not. The valve is a replaceable safety component, and most dripping valves are fixed with a new valve, sometimes plus an expansion tank if thermal expansion is the root cause. The tank itself only enters the conversation if it is also showing its own failure signs: rusty water, rumbling sediment, or a leak from the tank body. We check the tank's condition on every valve call so you get the full picture.
