TPR Valve Replacement in Geneva, IL 60134
IN SHORT
A dripping TPR valve in Geneva, IL 60134 gets a pressure check first, then a new 150 psi / 210-degree valve goes in with discharge piping to current practice. Closed plumbing systems are common here, so we check for thermal expansion on every call. Call (833) 713-2101 to schedule the replacement.
Signs Your TPR Valve Needs Replacing in Geneva, IL 60134
Crust, corrosion, and a frozen lever
A TPR valve announces its condition visually if you know where to look. White mineral crust around the valve outlet, green corrosion on the brass body, or a discharge pipe that feels warm when no hot water has been used all point to a valve that has been weeping. Worse is the lever that will not budge when lifted gently: a valve whose test lever is frozen by sediment and scale is a valve that cannot be verified, and an unverifiable safety device is not doing its job. If you have never lifted that lever, do not force it now; a stuck valve can start leaking the moment it is disturbed, which is a job for a planned visit, not a surprise.
Water on the floor with no obvious source
Sometimes the first sign is not the valve at all but its consequences: a puddle near the tank base, damp cardboard in the utility room, or a musty smell that was not there last month. Homeowners understandably blame the tank itself, but a weeping TPR valve routes water down the discharge pipe to the floor, which looks exactly like a tank leak from across the room. Tracing the water upward, rather than assuming the worst about the tank, is the step that saves a good water heater from a premature replacement. We see this misdiagnosis regularly, and the relief on a homeowner's face when the tank is fine and only the valve needs replacing is one of the better parts of the job.
Pressure symptoms around the house
TPR valves do not operate in isolation; they respond to what the whole plumbing system is doing. If you hear banging pipes when a washing machine valve snaps shut, notice the water heater's discharge pipe warm after nobody used hot water, or find the pressure gauge on the system reading high, the TPR valve is absorbing stress it was not meant to handle daily. These are the houses where a replaced valve starts dripping again within months unless the underlying pressure or expansion problem is fixed too, which is why our replacement visit always includes a system pressure check.
Any of these signs warrants a look before the problem grows:
- A puddle or damp concrete near the tank base that traces back up the pipe
- The test lever is stuck, stiff, or snaps back without releasing water
- The discharge pipe feels warm even when no hot water has been used recently
- White mineral crust or green corrosion on the valve body or pipe outlet
- A steady drip or intermittent trickle from the TPR discharge pipe
- A pressure gauge on the system reads noticeably above normal household range
If your discharge pipe is dripping or the valve lever will not move, call (833) 713-2101. Do not cap, plug, or valve off the discharge pipe; that defeats the safety device. The first step on our visit is a pressure check, which takes minutes.
What Makes TPR Valves Fail in 60134
Sediment and mineral fouling
DuPage County water leaves mineral behind everywhere it goes, and the TPR valve seat is no exception. Each weeping episode deposits a little more mineral on the seat, and each deposit makes the next seal a little worse, a slow ratchet toward a valve that can neither seal fully nor be trusted to open cleanly. Sediment stirred up in the tank can also lodge in the valve mechanism itself. Valves in this condition sometimes respond to a gentle lever test that flushes the seat, but a valve that has been crusting over for years usually needs replacement; the seat is compromised, and a compromised safety device is not a candidate for wishful thinking.
High incoming water pressure
Municipal water pressure varies by neighborhood, elevation, and time of day, and in some DuPage County blocks it runs high enough to keep a water heater perpetually near its relief threshold. A system sitting at elevated pressure leaves the TPR valve no margin: every heating cycle nudges it closer to opening, and eventually it starts weeping at the seat. High pressure also accelerates wear on every seal and valve in the house, from toilet fill valves to the water heater's own connections. A five-minute pressure test with a gauge tells us whether pressure is the culprit, and a pressure-reducing valve on the main is the lasting fix when it is.
Age, fatigue, and wrong ratings
TPR valves are mechanical devices with a spring and a thermal element, and both fatigue with age and cycling. A valve that has been in service for many years may simply be worn out, opening at pressures below its rating or failing to reseat after a legitimate relief event. We also encounter valves with the wrong rating for the tank, replacements grabbed off a shelf without checking the BTU and pressure specs, and valves installed without a discharge pipe at all. The rating matters: a standard residential TPR valve is set for 150 psi and 210 degrees Fahrenheit, matched to the tank it protects, and anything else is a mismatch we correct.
How We Replace a TPR Valve in Geneva
Here is the step-by-step process we follow on a tpr valve replacement call in Geneva, IL 60134. The order is deliberate: safety and diagnosis come before any wrench turns, and verification closes the job.
- Diagnose before disassembling. A dripping TPR valve is a symptom, and we treat it like one. The visit starts with the lever test, a look at the discharge pipe's condition and routing, and a pressure reading on the system. Only once we know whether we are dealing with a failed valve, a fouled valve, or a healthy valve relieving a system problem do we pick up tools.
- Map the system: closed or open. We check the main for a pressure-reducing valve, check valve, or backflow preventer, any of which closes the system and makes thermal expansion the prime suspect. We also check the expansion tank if one exists: a waterlogged or flat tank is the same as no tank at all.
- Safe shutdown. Cold water supply off, energy off at the breaker or gas control. We confirm the tank is not firing before we open anything, and we let the water at the top of the tank cool enough to work around safely.
- Controlled partial drain. Using the tank's drain valve and a hose run to a floor drain or outside, we drop the level just below the valve tapping. Keeping most of the tank full means less refill time, less air in the system, and less disturbed sediment.
- Valve and piping replacement. Out comes the old valve; in goes a new 150 psi / 210-degree valve rated for the tank, sealed and torqued correctly. The discharge piping is replaced or re-routed wherever the old run was undersized, trapped, corroded, or terminated where a discharge would go unnoticed.
- Expansion control. If the diagnosis pointed at thermal expansion, this is when it gets solved: a new or recharged expansion tank on the cold supply, pre-charged to match the house pressure, so the heating cycle's pressure rise has somewhere harmless to go.
- Restart and prove it. Refill, purge air, restart, and then watch. We run the tank through a full heating cycle while monitoring the gauge and the new valve, confirming the pressure stays in range and the valve stays dry. The job is done when the system proves it, not when the wrench stops turning.
Equipment and Materials for TPR Replacement in 60134
The valve itself

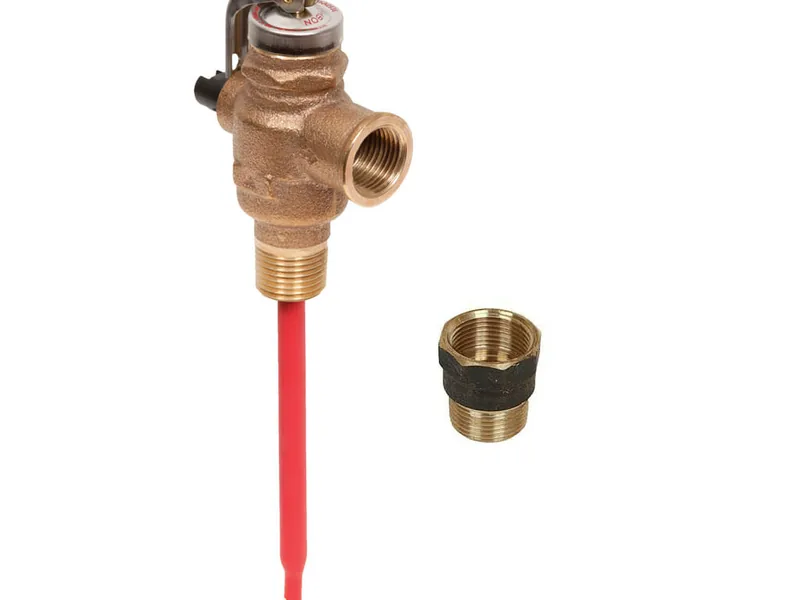

The heart of the job is the replacement TPR valve: a brass temperature-and-pressure relief valve rated at 150 psi and 210 degrees Fahrenheit, sized to the tank's input. We stock the standard residential ratings and match the valve to the water heater's specifications, because an underrated valve is a safety gap and an overrated one may not protect the tank. The valve's probe length matters too; it must reach into the top few inches of tank water to sense temperature accurately.
Expansion tanks and gauges
Where thermal expansion is the root cause, the lasting fix is an expansion tank on the cold-water line, pre-charged with air to match the house's water pressure. We carry tanks in the common residential sizes along with an accurate pressure gauge, because the tank's pre-charge must match the actual house pressure to work. A gauge left on a hose bib for a day can also reveal overnight pressure spikes that a single daytime reading misses.
Discharge piping done right
The discharge pipe is as important as the valve. We run it in copper or CPVC at full valve-outlet size, typically three-quarter inch, pitched to drain by gravity with no sags or upward loops that could trap water. It terminates a few inches above the floor, in a visible location, with a plain cut end: no threads, no cap, no valve. Every one of those details exists so that if the valve ever opens fully, scalding water goes where it can be seen and away from people, not into a hidden wall cavity.
Local Factors: TPR Valves in Geneva, IL 60134
TPR valve problems look the same everywhere until you ask why the valve is working so hard. In Geneva, IL 60134, the housing stock, the water, and the basement conditions give the local answers:
Geneva is a historic Fox River town of Victorian and early-1900s homes near the river, ringed by newer subdivisions, with the Fabyan Windmill and Geneva Commons as local anchors.
Century-old plumbing, galvanized and cast iron, survives in the historic district, while the subdivisions run modern copper and PEX.
Full basements are standard, and the Fox River valley keeps basement air humid enough to keep a patina on every exposed fitting.
Water comes from groundwater sources blended with Lake Michigan water, and historic-district homes carry some of the oldest active water heaters in the county.
In Geneva's Victorian-era homes, water heaters sometimes sit in stone-walled cellars where the TPR discharge pipe disappears into a floor drain nobody has looked at in years, and the first sign of a failing valve is a cellar that smells damp for no obvious reason.
If any of this sounds like your home, call (833) 713-2101. Tell us the ZIP code 60134 and what you are seeing, and we will take it from there.
TPR Valve Replacement FAQs in Geneva, IL
Why do TPR valves drip more often in Geneva?
Direct answer: local water and local plumbing. Geneva's 60134 homes run on Lake Michigan water that leaves mineral on every valve seat, and century-old plumbing, galvanized and cast iron, survives in the historic district, while the subdivisions run modern copper and pex. that aging supply plumbing means pressure irregularities are common. Where the system is closed by a pressure-reducing valve or backflow preventer, thermal expansion adds nightly pressure spikes the TPR valve must relieve. The valve is usually the messenger; the message is about pressure, minerals, or both.
My Geneva home was built decades ago. Is the TPR discharge routing likely up to current practice?
Direct answer: often not. Geneva is a historic Fox River town of Victorian and early-1900s homes near the river, ringed by newer subdivisions, with the Fabyan Windmill and Geneva Commons as local anchors. Water heaters in these homes have frequently been replaced while the original discharge pipe was reused, and routing that was acceptable decades ago often falls short today: undersized pipe, upward traps, termination where a discharge would go unseen, or a pipe that simply ends inside a wall. Every TPR replacement we do includes bringing the discharge routing up to current practice.
Where should the TPR discharge pipe terminate in a Geneva basement?
Direct answer: a few inches above the floor, in a visible spot, with a plain cut end. In Geneva's full basements, that usually means terminating where you will actually see it if the valve ever opens, not behind the tank or into a hidden drain. No threads, no cap, no valve on the end, and a continuous downhill run so the pipe drains by gravity. If your current pipe disappears somewhere you cannot see, that is worth correcting on the replacement visit.
Does Geneva's water affect TPR valves?
Direct answer: yes, through mineral fouling. Lake Michigan water via the DuPage Water Commission is moderately hard, and each weeping episode deposits minerals on the valve seat that make the next seal worse. Water comes from groundwater sources blended with Lake Michigan water, and historic-district homes carry some of the oldest active water heaters in the county. In damp Geneva basements, external corrosion joins internal fouling. The practical upshot: test the lever yearly, and replace rather than nurse a valve that has been crusting over for years.
How often should I test the TPR valve lever?
Direct answer: a gentle lift of the test lever once a year is the standard practice, letting it snap back on its own. If water flows and stops cleanly, the valve is working. If nothing comes out, the valve may be blocked; if it keeps dribbling afterward, the seat is fouled. On older valves that have never been tested, be cautious: disturbing a long-seized valve can start a leak, which is a sign it needed replacing anyway.
Can I replace a TPR valve myself?
Direct answer: a handy homeowner can physically swap one, but there are real pitfalls: scalding water at the top of the tank, the need to match the valve rating to the tank, and discharge piping that must meet current routing practice. The bigger risk is misdiagnosing the cause: if thermal expansion or high pressure is behind the drip, a DIY valve swap just installs a new valve to drip the same way. A professional visit includes the pressure diagnosis that makes the repair last.
Is it dangerous to cap or plug a dripping TPR discharge pipe?
Direct answer: yes, do not do it. The discharge pipe is the escape route for scalding water and steam if the tank ever over-pressurizes or overheats. Capping it, threading a cap on the end, or valving it off defeats the safety device entirely, and a water heater with no working relief path can rupture with explosive force. If the drip bothers you, the fix is a proper valve replacement and pressure diagnosis, never a plug.
