TPR Valve Replacement in Oakbrook Terrace, IL 60181
IN SHORT
TPR valve replacement in Oakbrook Terrace, IL 60181 starts with testing the old valve and checking system pressure, then installing a new 150 psi / 210-degree valve with correctly routed discharge pipe. Many Oakbrook Terrace tanks still wear original discharge routing, which we update during replacement. Call (833) 713-2101 with your tank's age and drip pattern.
Signs Your TPR Valve Needs Replacing in Oakbrook Terrace, IL 60181
Pressure symptoms around the house
TPR valves do not operate in isolation; they respond to what the whole plumbing system is doing. If you hear banging pipes when a washing machine valve snaps shut, notice the water heater's discharge pipe warm after nobody used hot water, or find the pressure gauge on the system reading high, the TPR valve is absorbing stress it was not meant to handle daily. These are the houses where a replaced valve starts dripping again within months unless the underlying pressure or expansion problem is fixed too, which is why our replacement visit always includes a system pressure check.
Water on the floor with no obvious source
Sometimes the first sign is not the valve at all but its consequences: a puddle near the tank base, damp cardboard in the utility room, or a musty smell that was not there last month. Homeowners understandably blame the tank itself, but a weeping TPR valve routes water down the discharge pipe to the floor, which looks exactly like a tank leak from across the room. Tracing the water upward, rather than assuming the worst about the tank, is the step that saves a good water heater from a premature replacement. We see this misdiagnosis regularly, and the relief on a homeowner's face when the tank is fine and only the valve needs replacing is one of the better parts of the job.
Crust, corrosion, and a frozen lever
A TPR valve announces its condition visually if you know where to look. White mineral crust around the valve outlet, green corrosion on the brass body, or a discharge pipe that feels warm when no hot water has been used all point to a valve that has been weeping. Worse is the lever that will not budge when lifted gently: a valve whose test lever is frozen by sediment and scale is a valve that cannot be verified, and an unverifiable safety device is not doing its job. If you have never lifted that lever, do not force it now; a stuck valve can start leaking the moment it is disturbed, which is a job for a planned visit, not a surprise.
Any of these signs warrants a look before the problem grows:
- The test lever is stuck, stiff, or snaps back without releasing water
- A steady drip or intermittent trickle from the TPR discharge pipe
- A pressure gauge on the system reads noticeably above normal household range
- White mineral crust or green corrosion on the valve body or pipe outlet
- A puddle or damp concrete near the tank base that traces back up the pipe
- Banging or hammering pipes when fixtures or appliances shut off
If your discharge pipe is dripping or the valve lever will not move, call (833) 713-2101. Do not cap, plug, or valve off the discharge pipe; that defeats the safety device. The first step on our visit is a pressure check, which takes minutes.
What Makes TPR Valves Fail in 60181
Age, fatigue, and wrong ratings
TPR valves are mechanical devices with a spring and a thermal element, and both fatigue with age and cycling. A valve that has been in service for many years may simply be worn out, opening at pressures below its rating or failing to reseat after a legitimate relief event. We also encounter valves with the wrong rating for the tank, replacements grabbed off a shelf without checking the BTU and pressure specs, and valves installed without a discharge pipe at all. The rating matters: a standard residential TPR valve is set for 150 psi and 210 degrees Fahrenheit, matched to the tank it protects, and anything else is a mismatch we correct.
High incoming water pressure
Municipal water pressure varies by neighborhood, elevation, and time of day, and in some DuPage County blocks it runs high enough to keep a water heater perpetually near its relief threshold. A system sitting at elevated pressure leaves the TPR valve no margin: every heating cycle nudges it closer to opening, and eventually it starts weeping at the seat. High pressure also accelerates wear on every seal and valve in the house, from toilet fill valves to the water heater's own connections. A five-minute pressure test with a gauge tells us whether pressure is the culprit, and a pressure-reducing valve on the main is the lasting fix when it is.
Thermal expansion in a closed system
This is the number-one cause of chronic TPR weeping, and it has nothing to do with a bad valve. When water heats, it expands, and in an open plumbing system that extra volume simply pushes back into the municipal main. But many homes now have a pressure-reducing valve, a check valve, or a backflow preventer on the main, which closes the system: the expanded water has nowhere to go, so pressure spikes every time the tank fires. The TPR valve does exactly what it was designed to do and relieves the excess, drip by drip, day after day. Replacing the valve without addressing the expansion just installs a new valve to drip the same way, which is why we check for a closed system and an expansion tank on every TPR call.
How We Replace a TPR Valve in Oakbrook Terrace
Here is the step-by-step process we follow on a tpr valve replacement call in Oakbrook Terrace, IL 60181. The order is deliberate: safety and diagnosis come before any wrench turns, and verification closes the job.
- Diagnose before disassembling. A dripping TPR valve is a symptom, and we treat it like one. The visit starts with the lever test, a look at the discharge pipe's condition and routing, and a pressure reading on the system. Only once we know whether we are dealing with a failed valve, a fouled valve, or a healthy valve relieving a system problem do we pick up tools.
- Map the system: closed or open. We check the main for a pressure-reducing valve, check valve, or backflow preventer, any of which closes the system and makes thermal expansion the prime suspect. We also check the expansion tank if one exists: a waterlogged or flat tank is the same as no tank at all.
- Safe shutdown. Cold water supply off, energy off at the breaker or gas control. We confirm the tank is not firing before we open anything, and we let the water at the top of the tank cool enough to work around safely.
- Controlled partial drain. Using the tank's drain valve and a hose run to a floor drain or outside, we drop the level just below the valve tapping. Keeping most of the tank full means less refill time, less air in the system, and less disturbed sediment.

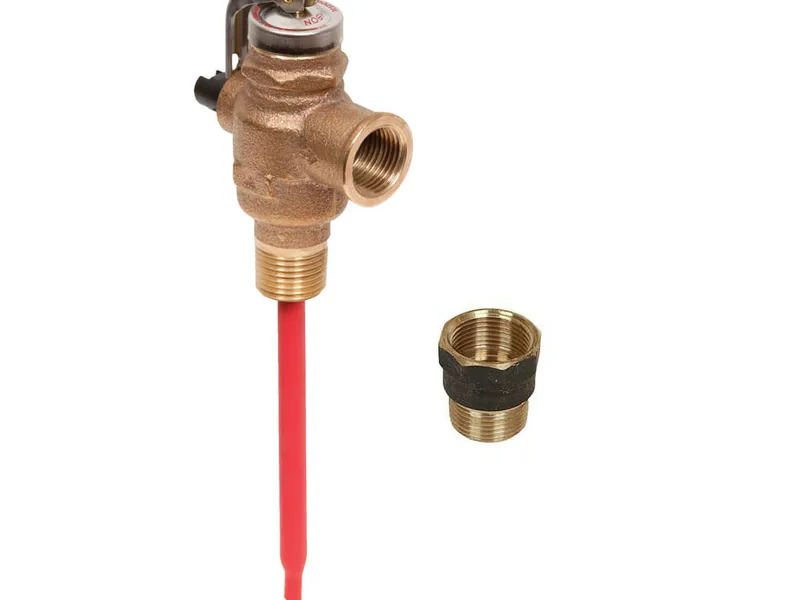

- Valve and piping replacement. Out comes the old valve; in goes a new 150 psi / 210-degree valve rated for the tank, sealed and torqued correctly. The discharge piping is replaced or re-routed wherever the old run was undersized, trapped, corroded, or terminated where a discharge would go unnoticed.
- Expansion control. If the diagnosis pointed at thermal expansion, this is when it gets solved: a new or recharged expansion tank on the cold supply, pre-charged to match the house pressure, so the heating cycle's pressure rise has somewhere harmless to go.
- Restart and prove it. Refill, purge air, restart, and then watch. We run the tank through a full heating cycle while monitoring the gauge and the new valve, confirming the pressure stays in range and the valve stays dry. The job is done when the system proves it, not when the wrench stops turning.
Equipment and Materials for TPR Replacement in 60181
Expansion tanks and gauges
Where thermal expansion is the root cause, the lasting fix is an expansion tank on the cold-water line, pre-charged with air to match the house's water pressure. We carry tanks in the common residential sizes along with an accurate pressure gauge, because the tank's pre-charge must match the actual house pressure to work. A gauge left on a hose bib for a day can also reveal overnight pressure spikes that a single daytime reading misses.
Drainage and thread supplies
The supporting kit is unglamorous but essential: a drain hose long enough to reach a floor drain or the outdoors, buckets for the inevitable dribbles, thread sealant rated for hot-water service, and backup wrenches sized for valve bodies. We also carry dielectric unions for the cases where dissimilar metals at the tank connections are contributing their own slow corrosion to the neighborhood around the valve.
Discharge piping done right
The discharge pipe is as important as the valve. We run it in copper or CPVC at full valve-outlet size, typically three-quarter inch, pitched to drain by gravity with no sags or upward loops that could trap water. It terminates a few inches above the floor, in a visible location, with a plain cut end: no threads, no cap, no valve. Every one of those details exists so that if the valve ever opens fully, scalding water goes where it can be seen and away from people, not into a hidden wall cavity.
Local Factors: TPR Valves in Oakbrook Terrace, IL 60181
TPR valve problems look the same everywhere until you ask why the valve is working so hard. In Oakbrook Terrace, IL 60181, the housing stock, the water, and the basement conditions give the local answers:
Oakbrook Terrace is a small city dominated by 1960s through 1980s apartments and condominiums, with some single-family streets, all in the shadow of the Oakbrook Terrace Tower.
Copper supply lines feed multi-family systems designed for shared demand, with commercial-grade water heating equipment in the larger buildings.
Basements vary, with many slab-on-grade and multi-family buildings where mechanical rooms serve the whole structure.
Lake Michigan water serves the city, and shared water heater systems mean one failing component can affect a dozen households.
Shared water heating systems in Oakbrook Terrace's condo and apartment buildings put commercial-grade TPR valves under constant demand, and building managers here schedule valve checks the way they schedule elevator service, because a failure affects everyone.
If any of this sounds like your home, call (833) 713-2101. Tell us the ZIP code 60181 and what you are seeing, and we will take it from there.
TPR Valve Replacement FAQs in Oakbrook Terrace, IL
Why do TPR valves drip more often in Oakbrook Terrace?
Direct answer: local water and local plumbing. Oakbrook Terrace's 60181 homes run on Lake Michigan water that leaves mineral on every valve seat, and copper supply lines feed multi-family systems designed for shared demand, with commercial-grade water heating equipment in the larger buildings. that aging supply plumbing means pressure irregularities are common. Where the system is closed by a pressure-reducing valve or backflow preventer, thermal expansion adds nightly pressure spikes the TPR valve must relieve. The valve is usually the messenger; the message is about pressure, minerals, or both.
My Oakbrook Terrace home was built decades ago. Is the TPR discharge routing likely up to current practice?
Direct answer: often not. Oakbrook Terrace is a small city dominated by 1960s through 1980s apartments and condominiums, with some single-family streets, all in the shadow of the Oakbrook Terrace Tower. Water heaters in these homes have frequently been replaced while the original discharge pipe was reused, and routing that was acceptable decades ago often falls short today: undersized pipe, upward traps, termination where a discharge would go unseen, or a pipe that simply ends inside a wall. Every TPR replacement we do includes bringing the discharge routing up to current practice.
Where should the TPR discharge pipe terminate in a Oakbrook Terrace basement?
Direct answer: a few inches above the floor, in a visible spot, with a plain cut end. In Oakbrook Terrace's full basements, that usually means terminating where you will actually see it if the valve ever opens, not behind the tank or into a hidden drain. No threads, no cap, no valve on the end, and a continuous downhill run so the pipe drains by gravity. If your current pipe disappears somewhere you cannot see, that is worth correcting on the replacement visit.
Does Oakbrook Terrace's water affect TPR valves?
Direct answer: yes, through mineral fouling. Lake Michigan water via the DuPage Water Commission is moderately hard, and each weeping episode deposits minerals on the valve seat that make the next seal worse. Lake Michigan water serves the city, and shared water heater systems mean one failing component can affect a dozen households. In damp Oakbrook Terrace basements, external corrosion joins internal fouling. The practical upshot: test the lever yearly, and replace rather than nurse a valve that has been crusting over for years.
Does a dripping TPR valve mean I need a new water heater?
Direct answer: usually not. The valve is a replaceable safety component, and most dripping valves are fixed with a new valve, sometimes plus an expansion tank if thermal expansion is the root cause. The tank itself only enters the conversation if it is also showing its own failure signs: rusty water, rumbling sediment, or a leak from the tank body. We check the tank's condition on every valve call so you get the full picture.
Is it dangerous to cap or plug a dripping TPR discharge pipe?
Direct answer: yes, do not do it. The discharge pipe is the escape route for scalding water and steam if the tank ever over-pressurizes or overheats. Capping it, threading a cap on the end, or valving it off defeats the safety device entirely, and a water heater with no working relief path can rupture with explosive force. If the drip bothers you, the fix is a proper valve replacement and pressure diagnosis, never a plug.
How often should I test the TPR valve lever?
Direct answer: a gentle lift of the test lever once a year is the standard practice, letting it snap back on its own. If water flows and stops cleanly, the valve is working. If nothing comes out, the valve may be blocked; if it keeps dribbling afterward, the seat is fouled. On older valves that have never been tested, be cautious: disturbing a long-seized valve can start a leak, which is a sign it needed replacing anyway.
