Water Heater Pan Installation in Lisle, IL 60532

IN SHORT: When the water heater in Lisle, IL 60532 has no drain pan beneath it, a single tank failure can flood the surrounding area. First step: look under the tank for a pan with a drain line, then call (833) 713-2101 to schedule installation.
Water Heater Pan Installation in Lisle, IL 60532

IN SHORT: When the water heater in Lisle, IL 60532 has no drain pan beneath it, a single tank failure can flood the surrounding area. First step: look under the tank for a pan with a drain line, then call (833) 713-2101 to schedule installation.

Water Heater Pan Problem Signs and Causes in Lisle

In Lisle, drain pans protect finished subdivision basements and commercial spaces alike. The 1960s to 1980s neighborhoods near the DuPage River watershed have basements that are finished living space over aging tanks, while the corporate corridor's offices, break rooms, and restrooms run small commercial heaters where a leak disrupts business. A pan with a proper drain line contains the tank's failure in both settings. Here is where Lisle properties need one.

Walk through this checklist at your water heater; any yes means a pan belongs there:

  • Does the tank sit directly on the floor? Then the first leak goes wherever it wants.
  • Is the old pan rusted, cracked, or undersized? Then it protects nothing.
  • Does the pan lack a drain line? Then it merely postpones the overflow.
  • Is there finished space below or beside the heater? Then an uncontained leak is expensive.
  • Are there stains around the tank base? Then the tank has already warned you once.
  • Is a new tank on the way? Then the pan goes in with it, at minimal added labor.
  • Did an inspector flag it? Then it is already a documented deficiency.

Pans exist because tanks fail in predictable ways. The failures a pan is designed to catch:

  • Bottom corrosion weeps. The most common tank failure: the steel bottom thins over years and begins a slow leak, exactly what a pan contains indefinitely.
  • Temperature and pressure relief discharge. The T and P valve opens during over-temperature or over-pressure events and can release significant hot water.
  • Fitting and connection drips. Inlet, outlet, and drain-valve connections can weep for months before anyone notices.
  • Condensation runoff. Cold incoming water condenses on the tank jacket in humid basements; the pan catches the drips.
  • Catastrophic rupture. Rare, but a pan with a clear drain still slows and directs the release better than a bare floor.

Our Water Heater Pan Installation Process in Lisle

Routing note for Lisle: residential pans typically drain to the sump pit or laundry-area floor drain. In corridor commercial spaces we route to mop sinks or floor drains, keeping runs sloped, secured, and out of customer or staff traffic.

  1. Size it right. The tape measure decides: pan diameter must clear the tank with inches to spare.
  2. Power down the heater. Water off, energy off, pressure relieved.
  3. Partial drain. Enough water out to lift the tank without strain or risk.
  4. Break the water connections. Inlet and outlet disconnected and set aside in order.

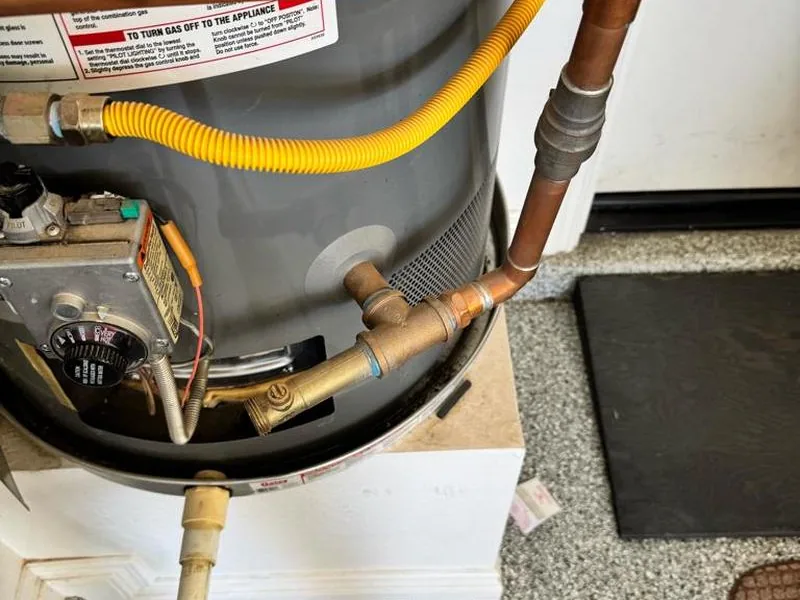

  5. Slide the pan home. Lift, level with shims, center the tank in the pan.
  6. Connect the drain. PVC from pan fitting to drain point, every section falling toward the exit.
  7. Refill and check. Water back on, tank full, air out, joints dry.
  8. Final proof. A bucket of water through the pan confirms drainage; the alarm goes in; the heater fires normally.

Equipment and Materials We Use

The materials are simple; the sizing and routing are what make the difference:

  • Correctly sized pan. Plastic or aluminum, chosen to clear the tank's diameter with room to spare. We measure the tank rather than guessing.
  • PVC drain line. Pipe and fittings run from the pan to the floor drain, sump pit, laundry tub, or exterior, sloped so gravity does all the work.
  • Drain fitting and sealant. The adapter at the pan outlet, sealed so the connection itself never becomes the leak.
  • Leak alarm. Battery sensor in the pan that alerts at the first sign of collected water, the early warning that makes the pan a system instead of a tray.
  • Leveling shims. Small but essential: a pan that tilts away from its drain is barely better than no pan.
  • Optional elevation stand. Recommended where basements take water regularly, lifting the heater while the pan still catches its leaks.

Local Factors for Pan Installation in Lisle, IL 60532

Lisle's finished subdivision basements make the standard residential case with a local accent. The 1960s to 1980s homes near the arboretum and the river watershed often have family rooms and home offices below grade, and their tract-era tanks are entering the weeping years. A pan under the current tank protects the basement right now, during the highest-risk period, with its drain line running to the sump pit or laundry-area floor drain that this construction typically includes.

The corporate corridor makes the commercial case. Small commercial heaters in office break rooms, restaurants, and retail spaces sit above finished interiors where a leak disrupts operations, not just flooring. Pans under these units route to mop sinks or floor drains, containing failures that would otherwise close a business for cleanup. For Lisle's condo and townhome pockets, where heaters sit in closets above finished space, the pan is the standard protection against a leak reaching the rooms below.

For Lisle's finished basements, fold the pan check into the fall routine: pour water into the pan, confirm it reaches the sump or floor drain freely, and test the alarm before heating season. Corridor commercial properties should check quarterly, since a blocked commercial pan drain risks disrupting business, and the check belongs on the building's preventive maintenance list. In condo and townhome pockets, confirm the closet drain line has not been disturbed by storage, and keep the alarm audible by not burying the heater behind boxes. Consistent small checks beat emergency responses.

What to Expect During Your Visit in Lisle

When you call (833) 713-2101 from Lisle, we will ask the tank diameter, location, and whether it serves a home or a business, since commercial pans and drains are sized differently. The technician sets the correctly sized pan, routes the drain to the sump, floor drain, or mop sink with a continuous slope, flow-tests it, and installs the alarm. For finished basements the line runs discreetly along walls. Clearing the heater area beforehand is the only preparation needed.

Frequently Asked Questions

In many jurisdictions a pan is required wherever a water heater leak would damage the building or disrupt occupancy, which describes most commercial installations. Beyond code, it is plain risk management: a leak that closes your business for cleanup costs far more than the pan. We route commercial pan drains to mop sinks or floor drains.
The pan plus a water alarm is the right baseline: containment plus early warning. For a basement with valuable equipment, some homeowners add an automatic water shutoff valve as a third layer. The pan is where every protection plan starts, because it handles the most common failure at the source.
Yes. A closet heater above finished space is exactly the configuration where a leak causes the most damage the fastest, and many codes require the pan there. Use a low-profile pan sized to the tank, with the drain line run through the closet wall to the nearest drain.
Yes, the laundry tub is a fine drain destination where the slope works. We run PVC from the pan to the tub with a continuous downward grade, securing the line along the wall. Just keep the tub's own drain clear, since a backed-up tub would defeat the purpose.
Absolutely now. A forty-year-old tank is living in its highest-risk years, and the slow bottom weep is the most likely failure mode, exactly what a pan catches. Do not wait for the replacement: protect the basement today, and let the new tank set into the existing pan when its time comes.
Yes, when the relief line terminates over the pan, which we verify during installation. Temperature and pressure relief valves can discharge significant hot water during an over-temperature event. The pan and its drain handle that discharge the same way they handle a tank weep.
Quarterly is sensible for commercial settings, since the cost of a blocked drain is a disrupted business. Pour water into the pan, confirm free flow, check the line's connections, and test any alarm. In low-traffic mechanical rooms, add it to the building's preventive maintenance checklist.
Usually yes. Small commercial and residential-style heaters each take about an hour once the plan is set, so multiple units in one building are routinely handled in a single scheduled visit, ideally off-hours. We measure every tank in advance so each pan is correctly sized, map each drain route to the nearest mop sink or floor drain, and test every drain and alarm before leaving. Coordinating through property management keeps suite occupants informed about the brief water interruptions.
