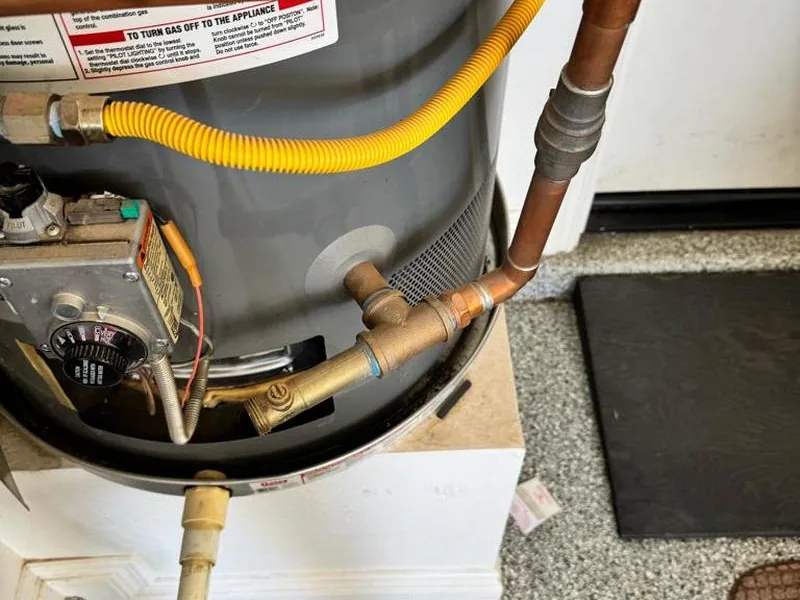

Water Heater Pan Installation in Lombard, IL 60148

IN SHORT: If the water heater in your Lombard, IL 60148 home sits directly on the floor with no drain pan, one tank leak can soak flooring and walls. First step: check for a pan and a drain line under the tank, then call (833) 713-2101 to have one installed.

Water Heater Pan Problem Signs and Causes in Lombard

In Lombard's ranch and split-level basements, the water heater usually anchors a utility corner near the laundry, and the rest of the basement has spent the decades since becoming finished space: rec rooms, workshops, storage for the things that matter. A drain pan under the heater is the acknowledgment that tanks eventually leak and basements are finished now. With a proper drain line to the floor drain or sump, the tank's failure stays in the utility corner. Here is when to add one.

Here is how to tell your water heater needs a drain pan, or a better one:

• Bare floor under the tank. The most common situation in older homes: the heater was installed before pans were standard practice.
• Deteriorated pan. Corroded metal pans and sun-brittled or heat-warped plastic pans lose containment long before the tank fails.
• Undrained pan. A pan without a drain line fills once and then overflows, which only postpones the damage by hours.
• Heater over living space. Closet installs, upstairs units, and heaters above finished basements all demand a drained pan.
• Staining around the base. Past weeping leaves its mark; tanks that have wept once almost always weep again.
• New tank installation. The changeout is the natural, lowest-cost moment to add or renew the pan.
• Documented requirement. Home inspections, insurers, and local codes flag missing pans where leaks would cause structural damage.

Tanks fail in a few predictable ways, and the pan is sized for all of them:

• Bottom weeps. Corrosion thins the tank floor over the years until it seeps, the classic slow leak a drained pan handles indefinitely.
• Relief discharge. The T and P valve vents hot water during over-temperature or over-pressure events.
• Joint seeps. Supply connections, drain valves, and anode ports develop drips long before anyone looks.
• Condensation. Cold fill water sweats on the jacket in humid basements and runs down into the pan.
• Sudden rupture. Rare, but the pan still directs the surge toward the drain instead of across the floor.

Our Water Heater Pan Installation Process in Lombard

Routing note for Lombard: the laundry-area floor drain or standpipe is the natural pan drain target in most ranch basements. In split-levels we route to the sump pit where the slope works, keeping the line secured along the foundation wall.

1. Survey and measure. We confirm the tank's diameter against the pan size and pick the drain target with the best gravity path.
2. Shut off water and energy. Inlet valve closed; breaker off or gas valve closed according to heater type.
3. Drain to lifting weight. Enough water comes out to make the tank safely liftable, with pressure relieved first.
4. Disconnect supply lines. Inlet and outlet are separated, keeping fittings organized for reassembly.
5. Set the pan under the tank. The lift is done with proper equipment, the pan is leveled with shims, and the tank is centered in it.
6. Run the drain line. PVC from the pan fitting to the destination, every inch sloped downhill, secured neatly along walls.
7. Refill and reconnect. Water lines reattached, tank filled, air bled, joints inspected for any weep.
8. Prove the system. Heater restarted, pan drain tested with poured water, water alarm installed and tested. The job is not done until the drain is proven.

Equipment and Materials We Use

A proper pan installation uses straightforward, durable materials:

• Drain pan sized to the tank. High-impact plastic or aluminum, wider than the tank diameter by a couple of inches all around. Plastic resists corrosion; aluminum resists heat and impact.
• PVC drain pipe and fittings. Typically 3/4-inch or 1-inch PVC with elbows as needed, run with continuous downward slope to the drain destination.
• Pan drain adapter. The threaded fitting that connects the pan's outlet to the PVC line, sealed against leaks.
• Water leak alarm. A battery-powered sensor that sits in the pan and sounds when water collects, giving early warning of a tank leak or blocked drain.
• Shims. For leveling the pan so water flows to the drain connection instead of pooling.
• Heater stand, where needed. In flood-prone spots, elevating the heater on a stand above routine high-water marks, with the pan underneath.

Local Factors for Pan Installation in Lombard, IL 60148

Lombard's ranch basements make pan installation straightforward and worthwhile. The heater typically sits near the laundry, where a floor drain or laundry standpipe is within easy reach, so the pan's PVC drain line has a short, well-sloped run. That simplicity matters because it removes every excuse: a pan installed in an afternoon protects a finished rec room for the rest of the tank's life, including the high-risk final years when bottom weeps begin.

Split-levels deserve the stronger pitch. Their half-buried utility rooms put the heater below grade on multiple sides, so a leak has nowhere to go but across the floor and under the door into finished areas. A pan with a sloped drain line is especially valuable there. And in the Yorktown-area townhomes, where heaters sit in closets above finished space, the low-profile pan with a through-wall drain line is the standard protection against a leak reaching the rooms below.

Lombard's ranch layouts make the pan check almost effortless, so there is little excuse to skip it: once a year, pour a bucket of water into the pan and watch it reach the laundry-area floor drain or standpipe. Test the alarm at the same time. For split-levels with half-buried utility rooms, keep the pan visible and the alarm unobstructed by storage, since those rooms are checked least often and need the protection most. When the heater is eventually replaced, have the pan re-inspected during the changeout; it is the cheapest moment to renew or upsize it.

What to Expect During Your Visit in Lombard

When you call (833) 713-2101 from Lombard, we will ask the tank diameter and confirm the laundry-area drain location, which is the natural target in most ranch basements. The technician sets the leveled pan, runs the short sloped PVC line to the drain, flow-tests it with poured water, and installs the alarm. Most installs take about two hours. Clearing the utility corner beforehand is the only preparation needed.
