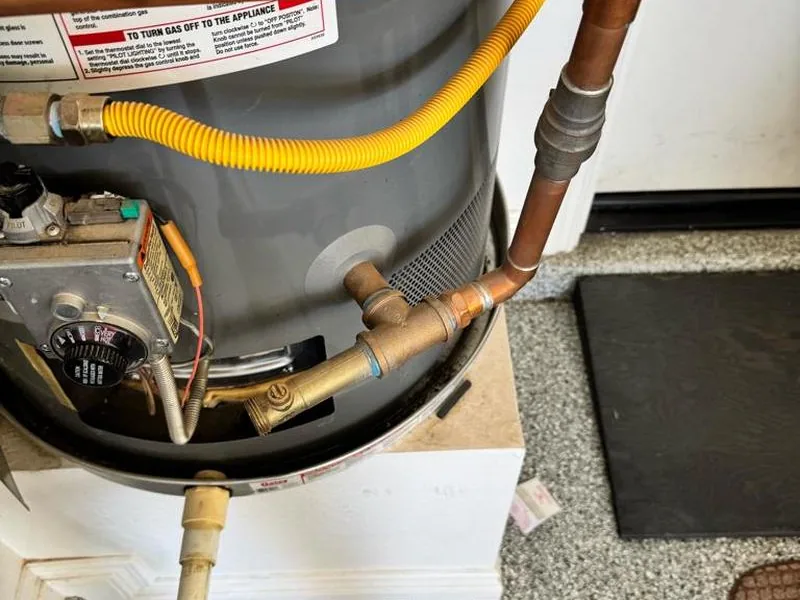

Water Heater Pan Installation in Naperville, IL 60540

IN SHORT: When the water heater in Naperville, IL 60540 has no drain pan beneath it, a single tank failure can flood the surrounding area. First step: look under the tank for a pan with a drain line, then call (833) 713-2101 to schedule installation.
Water Heater Pan Installation in Naperville, IL 60540

IN SHORT: When the water heater in Naperville, IL 60540 has no drain pan beneath it, a single tank failure can flood the surrounding area. First step: look under the tank for a pan with a drain line, then call (833) 713-2101 to schedule installation.

Water Heater Pan Problem Signs and Causes in Naperville

In Naperville, the drain pan is finished-basement protection. This is a community where lower levels become theaters, offices, gyms, and guest suites, and where a water heater leak is measured in remodeling budgets, not mops. Whether it is a historic downtown colonial or a newer subdivision two-story, the logic holds: the tank will eventually leak, and a pan with a proper drain line decides whether that leak is a cleanup or a construction project. Here is how to think about it.

Here is how to tell your water heater needs a drain pan, or a better one:

  • Bare floor under the tank. The most common situation in older homes: the heater was installed before pans were standard practice.
  • Deteriorated pan. Corroded metal pans and sun-brittled or heat-warped plastic pans lose containment long before the tank fails.
  • Undrained pan. A pan without a drain line fills once and then overflows, which only postpones the damage by hours.
  • Heater over living space. Closet installs, upstairs units, and heaters above finished basements all demand a drained pan.
  • Staining around the base. Past weeping leaves its mark; tanks that have wept once almost always weep again.
  • New tank installation. The changeout is the natural, lowest-cost moment to add or renew the pan.
  • Documented requirement. Home inspections, insurers, and local codes flag missing pans where leaks would cause structural damage.

Tanks fail in a few predictable ways, and the pan is sized for all of them:

  • Bottom weeps. Corrosion thins the tank floor over the years until it seeps, the classic slow leak a drained pan handles indefinitely.
  • Relief discharge. The T and P valve vents hot water during over-temperature or over-pressure events.
  • Joint seeps. Supply connections, drain valves, and anode ports develop drips long before anyone looks.
  • Condensation. Cold fill water sweats on the jacket in humid basements and runs down into the pan.
  • Sudden rupture. Rare, but the pan still directs the surge toward the drain instead of across the floor.

Our Water Heater Pan Installation Process in Naperville

Routing note for Naperville: each heater gets its own pan and drain line, routed to the sump pit or floor drain along walls and out of living space. In fully finished basements we keep runs concealed and serviceable, with water alarms labeled per heater.

  1. Measure and plan. Tank diameter sets the pan size; the floor and surroundings set the drain route.
  2. Shut the heater down. Water inlet closed; electric breaker off or gas valve closed.
  3. Lighten for lifting. Pressure relieved at a tap, then the tank drains to a safe lifting weight.
  4. Disconnect water lines. Inlet and outlet separated with fittings kept organized.
  5. Set the pan. Tank lifted with proper equipment, pan leveled on shims, tank centered inside it.
  6. Plumb the drain line. PVC from the pan outlet to the destination, sloped downhill its entire length and secured.
  7. Reconnect and refill. Lines reattached, tank filled, air purged, all joints checked dry.
  8. Test and alarm. Water poured into the pan proves the drain; a leak alarm is placed and tested; the heater returns to service.

Equipment and Materials We Use

Every pan installation draws from the same short, proven materials list:

  • Sized pan. Plastic or aluminum, measured to clear the tank diameter with margin on every side.
  • PVC and fittings. Drain pipe run to the floor drain, sump, tub, or exterior on a constant downhill grade.
  • Outlet adapter. The sealed connection between the pan and the drain line.
  • Water alarm. Battery sensor that turns the pan from a tray into an early-warning system.
  • Shims for leveling. Because drainage only works when the pan tilts toward its outlet.
  • Stand for elevation. Where basements flood, raising the heater while the pan guards beneath it.

Local Factors for Pan Installation in Naperville, IL 60540

Naperville's finished basements are the strongest pan argument in the area. Home theaters, offices, and guest suites represent the kind of investment where a slow tank weep becomes a five-figure problem, and that weep is the most common tank failure mode, exactly what a pan with a drain line handles indefinitely. Paired with a water alarm, the setup also provides early warning, which matters because slow leaks in finished basements can run for days behind walls and under flooring before anyone notices.

Large homes with multiple heaters need a pan under each tank, since any one of them can leak and all threaten the same finished space. In the newer subdivisions, installation is straightforward: floor drains and sump pits are standard, and builder-grade tanks accept pans without modification. Downtown historic homes take more planning, with pan drains routed to sump pits or to daylight where no floor drain exists, but the protection payoff is highest there, where old framing wicks water fast.

For Naperville's high-value finished basements, the protection plan deserves the same care as the space itself: correctly sized pans under every heater, sloped drains to the sump or floor drain, labeled alarms per unit, and for theater or office basements, consideration of an automatic shutoff valve as a third layer. Test each pan drain annually with poured water and test every alarm; in a multi-heater home, label which alarm belongs to which unit so a nighttime alert sends you to the right place. When any tank is replaced, re-inspect its pan during the changeout and upsize if the new tank is larger.

What to Expect During Your Visit in Naperville

When you call (833) 713-2101 from Naperville, we will ask the number of heaters, their diameters, and how finished the basement is, so each unit gets the right pan and a discreet drain route. The technician sets and levels every pan, runs sloped lines to the sump or floor drain along walls and out of living space, flow-tests each drain, and installs labeled alarms. Clearing the mechanical area beforehand is the only preparation needed.

Frequently Asked Questions

A correctly sized pan with a sloped drain line to the sump or floor drain, plus a water alarm in the pan for early warning. That is the baseline that handles the common slow leak. For a theater-level investment, some homeowners add an automatic water shutoff valve as a third layer. The pan is where every plan starts.
Yes. Either tank can leak, and both threaten the same finished basement. Each heater gets its own pan, sized to its tank, with its own drain line and its own labeled water alarm, so a middle-of-the-night alert tells you exactly which unit needs attention.
It is common, not ideal. Builders meet code minimums, and a pan is not always required where the heater sits near a drain on unfinished concrete. But code minimum and good protection differ, especially with finished space nearby. Adding a pan now is straightforward while everything is new and accessible.
Water alarms with smart features exist and can send phone alerts, which is genuinely useful for a finished basement you do not check daily. The pan itself is gloriously dumb, which is its virtue: no batteries, no connectivity, just gravity and a drain line. Pair the simple pan with whatever alerting you prefer.
We route along walls to the sump pit or the nearest floor drain, sometimes through a utility chase or behind finished walls with an access panel to keep it concealed but serviceable. In fully built-out basements the routing takes planning, but there is almost always a gravity path.
That is exactly the scenario where the pan plus alarm earns its keep. The pan contains the leak and the drain carries it away indefinitely for the common slow failure, and a smart alarm can alert you remotely. Without the pan, a vacation-week weep becomes a flooded basement discovered on return.
No. We keep the pan clear of the burner access panel, the drain valve, and the controls, so flushing, inspection, and future valve work proceed normally. The pan is passive protection that stays out of the way until the day it is needed.
The pan work itself does not change, but the drain routing gets extra care. We avoid any floor penetration near the radiant tubing and favor routing the PVC line along walls to the sump pit or an existing floor drain rather than cutting new paths through the heated slab. If your radiant installer left a tubing layout map, share it before the visit so the route is planned with full information. The pan, alarm, and testing proceed exactly as normal.
