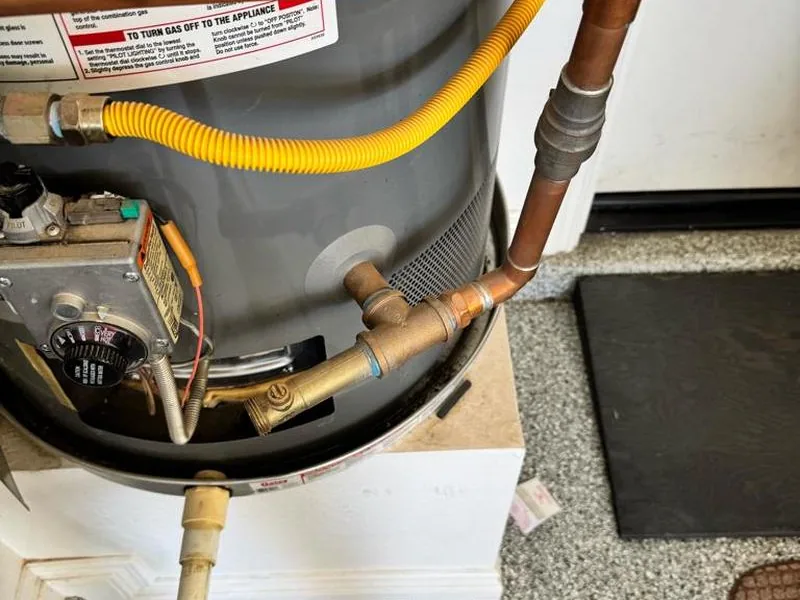

Water Heater Pan Installation in Oak Brook, IL 60523

IN SHORT: If the water heater in your Oak Brook, IL 60523 home sits directly on the floor with no drain pan, one tank leak can soak flooring and walls. First step: check for a pan and a drain line under the tank, then call (833) 713-2101 to have one installed.

Water Heater Pan Problem Signs and Causes in Oak Brook

In Oak Brook, a water heater leak is measured against what sits below it: finished lower levels with bars and theaters in the estates, and occupied commercial space along the corporate corridor. A large tank holds a large volume of water, and a pan sized to the tank with a proper drain line is what keeps that volume from reaching the finishes. For the corridor's commercial heaters, the pan is business-continuity equipment. Here is where Oak Brook properties need one.

These are the situations where a drain pan moves from optional to essential:

• Heater on bare concrete or flooring. The default in older homes, and the reason tank leaks become flooring projects.
• Pan past its prime. Metal pans rust through; plastic pans crack and warp. Either way, containment is gone.
• Pan without drainage. An undrained pan buys hours, not protection; the drain line is the working half of the system.
• Living space in the splash zone. Finished basements, upstairs closets, and neighboring units all demand contained drainage.
• History of weeping. Stains and mineral trails at the tank base are the tank's own forecast.
• Changeout scheduled. New tank, new pan: the cheapest moment to add protection is when the old unit is already out.
• Flagged by inspection. Missing pans surface in home inspections and insurance reviews wherever leaks threaten the structure.

Understanding what actually goes wrong with tanks explains why the pan matters:

• Slow bottom leaks. Tanks overwhelmingly fail by weeping from the corroded bottom, a failure mode a drained pan handles for as long as it takes you to notice.
• Relief valve events. When the T and P valve lifts, it discharges hot water under pressure; routed over the pan, that discharge drains away harmlessly.
• Seeping connections. Pipe joints, the drain valve, and the anode port can all develop slow drips that the pan intercepts.
• Sweating tanks. In damp basements, condensation forms on the cold tank and runs down; the pan keeps it off the floor.
• Sudden failures. Uncommon, but when a tank lets go all at once, a pan still channels water toward the drain instead of across the room.

Our Water Heater Pan Installation Process in Oak Brook

Routing note for Oak Brook: large-diameter pans for estate tanks need drain lines sized to carry real flow, routed to the sump or floor drain. In commercial spaces we route to floor drains or mop sinks, keeping runs out of occupied areas.

1. Assess the setup. We measure the tank diameter, check the floor for level, and identify the drain destination: floor drain, sump pit, laundry tub, or exterior.
2. Shut down the heater. Water supply off, and power or gas secured depending on the unit type.
3. Relieve pressure and drain partially. A hot tap is opened, then the tank drains enough to lighten it for lifting, usually a third to half.
4. Disconnect the water lines. Inlet and outlet connections are separated so the tank can be lifted.
5. Lift and set the pan. The tank is raised with an appliance dolly or by hand with two technicians, the pan is positioned and leveled with shims, and the tank is set into it.
6. Route the drain line. PVC runs from the pan's drain fitting to the chosen destination with a continuous downward slope, secured along the route.
7. Reconnect and refill. Water lines go back on, the tank refills completely, and air is purged through a hot tap.
8. Restore and test. Power or gas is restored, the heater is returned to service, and we pour water into the pan to prove the drain flows freely. A water alarm is placed in the pan.

Equipment and Materials We Use

The materials are simple; the sizing and routing are what make the difference:

• Correctly sized pan. Plastic or aluminum, chosen to clear the tank's diameter with room to spare. We measure the tank rather than guessing.
• PVC drain line. Pipe and fittings run from the pan to the floor drain, sump pit, laundry tub, or exterior, sloped so gravity does all the work.
• Drain fitting and sealant. The adapter at the pan outlet, sealed so the connection itself never becomes the leak.
• Leak alarm. Battery sensor in the pan that alerts at the first sign of collected water, the early warning that makes the pan a system instead of a tray.
• Leveling shims. Small but essential: a pan that tilts away from its drain is barely better than no pan.
• Optional elevation stand. Recommended where basements take water regularly, lifting the heater while the pan still catches its leaks.

Local Factors for Pan Installation in Oak Brook, IL 60523

Oak Brook estates make the volume argument for pans. A large-capacity tank releases a large volume of water when it fails, and the finished lower levels underneath, bars, theaters, guest suites, represent exactly the kind of investment where that volume does its worst. A pan sized to the tank diameter, with a drain line that can actually carry the flow to the sump or floor drain, is the baseline. Paired with a water alarm, it also provides the early warning that matters when the mechanical room is remote from daily living areas.

Along the corporate corridor, the pan is operational protection. Commercial heaters serve occupied space, and a leak that spreads across a finished interior disrupts business, not just flooring. Pans under commercial units route to floor drains or mop sinks, containing failures at the source. For the estates' multiple-heater setups, each tank gets its own pan and drain line, since any one of them threatens the same finished lower level.

Oak Brook estates should treat pan maintenance as part of the property's mechanical routine: annually pour water into each pan, confirm free drainage to the sump or floor drain, verify the lines are secure, and test every alarm. In remote mechanical rooms that nobody visits weekly, smart alarms that alert by phone close the monitoring gap. Corridor commercial properties should check quarterly and keep the pan inspection on the building's preventive maintenance checklist. When any tank is replaced, re-measure for the new unit; large tanks need large pans, and an undersized pan is not protection.

What to Expect During Your Visit in Oak Brook

When you call (833) 713-2101 from Oak Brook, we will ask each tank's diameter and the mechanical room layout, since large tanks need large pans with drains that can carry real flow. The technician sets and levels every pan, routes sloped lines to the sump, floor drain, or mop sink out of occupied areas, flow-tests each drain, and installs alarms. Commercial installs are scheduled off-hours when needed. Keeping the mechanical room accessible beforehand is the only preparation.
