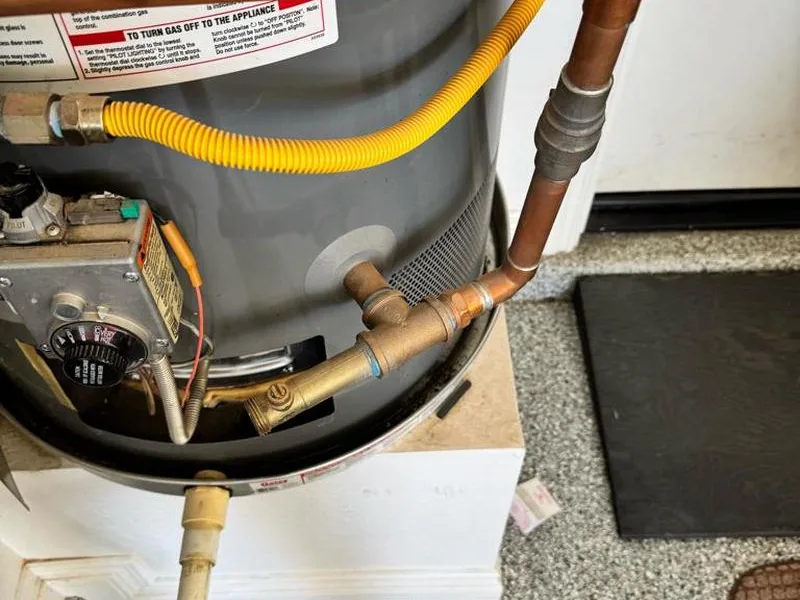

Water Heater Pan Installation in St. Charles, IL 60174

IN SHORT: If the water heater in your St. Charles, IL 60174 home sits directly on the floor with no drain pan, one tank leak can soak flooring and walls. First step: check for a pan and a drain line under the tank, then call (833) 713-2101 to have one installed.

Water Heater Pan Problem Signs and Causes in St. Charles

In St. Charles, the drain pan protects two eras of basement. The historic district's finished lower levels sit in homes where old framing wicks water fast and modern floor drains were never part of the plan. The newer subdivisions have drains and sumps but builder-grade tanks that will age like all tanks. In both settings the logic is identical: the tank will eventually leak, and a pan with a drain line decides whether that is a cleanup or a construction project.

Walk through this checklist at your water heater; any yes means a pan belongs there:

• Does the tank sit directly on the floor? Then the first leak goes wherever it wants.
• Is the old pan rusted, cracked, or undersized? Then it protects nothing.
• Does the pan lack a drain line? Then it merely postpones the overflow.
• Is there finished space below or beside the heater? Then an uncontained leak is expensive.
• Are there stains around the tank base? Then the tank has already warned you once.
• Is a new tank on the way? Then the pan goes in with it, at minimal added labor.
• Did an inspector flag it? Then it is already a documented deficiency.

Tanks fail in a few predictable ways, and the pan is sized for all of them:

• Bottom weeps. Corrosion thins the tank floor over the years until it seeps, the classic slow leak a drained pan handles indefinitely.
• Relief discharge. The T and P valve vents hot water during over-temperature or over-pressure events.
• Joint seeps. Supply connections, drain valves, and anode ports develop drips long before anyone looks.
• Condensation. Cold fill water sweats on the jacket in humid basements and runs down into the pan.
• Sudden rupture. Rare, but the pan still directs the surge toward the drain instead of across the floor.

Our Water Heater Pan Installation Process in St. Charles

Routing note for St. Charles: historic homes without floor drains usually route the pan line to the sump pit or to daylight through the foundation wall. In newer subdivisions we use the existing floor drain or laundry standpipe with a continuous slope.

1. Survey the site. We confirm pan size against the tank and choose the drain target with the cleanest gravity run.
2. Isolate water and energy. Inlet valve shut; power or gas secured per heater type.
3. Drain to liftable weight. The tank gives up enough water to be raised safely.
4. Free the piping. Supply connections come apart to allow the lift.
5. Place the pan. Leveled, positioned, and shimmed before the tank is lowered into it.
6. Run PVC to the drain. Continuous downward slope, neat securing along walls, termination at the chosen drain.
7. Restore the water. Connections remade, tank refilled, system bled and inspected.
8. Prove and protect. Drain flow-tested with poured water, alarm installed, heater restarted and verified.

Equipment and Materials We Use

A proper pan installation uses straightforward, durable materials:

• Drain pan sized to the tank. High-impact plastic or aluminum, wider than the tank diameter by a couple of inches all around. Plastic resists corrosion; aluminum resists heat and impact.
• PVC drain pipe and fittings. Typically 3/4-inch or 1-inch PVC with elbows as needed, run with continuous downward slope to the drain destination.
• Pan drain adapter. The threaded fitting that connects the pan's outlet to the PVC line, sealed against leaks.
• Water leak alarm. A battery-powered sensor that sits in the pan and sounds when water collects, giving early warning of a tank leak or blocked drain.
• Shims. For leveling the pan so water flows to the drain connection instead of pooling.
• Heater stand, where needed. In flood-prone spots, elevating the heater on a stand above routine high-water marks, with the pan underneath.

Local Factors for Pan Installation in St. Charles, IL 60174

Historic St. Charles homes are where pans prevent the worst outcomes. A tank leak in a Victorian with finished lower levels wicks into old framing and plaster within hours, and these homes rarely have modern floor drains, so pan installation usually means routing a new line to the sump pit or to daylight along the foundation. Stone-wall basements take some creativity, but the protection is worth it precisely because these are the hardest homes to dry out after a spread leak.

In the newer subdivisions, the case is timing. Builder-grade tanks have predictable service lives, floor drains and sump pits are standard, and a pan installed now guards the basement through the high-risk final years. The river-adjacent blocks add a note: high water tables mean basements that never fully dry, so a tank leak there lingers and feeds mold. A pan isolates the heater's failure from the groundwater background, and a water alarm tells you which problem you are facing.

Historic St. Charles homes gain the most from the pan installation visit itself, since it is the natural moment to correct relief-valve discharge routing that century-old installations often left terminating somewhere unhelpful. We route it over the pan as standard practice. Test the pan drain each fall with poured water and check the alarm before heating season; in stone-wall basements, confirm the drain fitting has not collected debris. For river-adjacent blocks with high water tables, the annual check should also confirm the pan line remains independent of any sump discharge work done during the year.

What to Expect During Your Visit in St. Charles

When you call (833) 713-2101 from St. Charles, we will ask the tank diameter and whether the home has a floor drain, sump, or neither, which determines the drain plan for historic versus newer construction. The technician confirms the route on arrival, shuts down and lightens the tank, sets the leveled pan, and runs the sloped line. The drain is flow-tested, the relief line is corrected over the pan where needed, and an alarm is installed. Clearing access to the heater beforehand is the only preparation.
